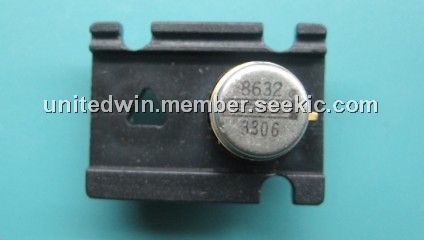

Product Summary

The 3527AM is a precision operational amplifier. It offers excelletn performance at moderate cost through the use of hybrid construction, monolithic ICs, matched FETs, thinfilm resistors, and active laser trimming. The applications of the device include current-to-votlage conversion, long term intergration, low droop sample/jold circuits, precision voltage amplification and high input resistance buffer.

Parametrics

3527AM absolute maximum ratings: (1)specification temperature range: -25 to 85℃; (2)operating temperature range: -55 to 125℃; (3)storage temperature range: -65 to 150℃; (4)junction-ambient temperature range: 235℃/W; (5)rated voltage: ±15VDC; (6)max safe input voltage: ±VS.

Features

3527AM features: (1)low priced; (2)ultra-low drift, 2μV/℃, max; (3)low initial offset voltage, 250μV, max; (4)low bias current, 2pA max; (5)low noise.

Diagrams

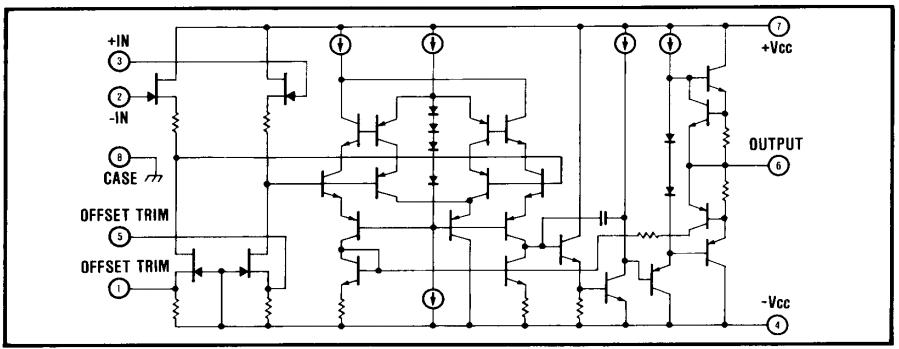

3527AM block diagram
