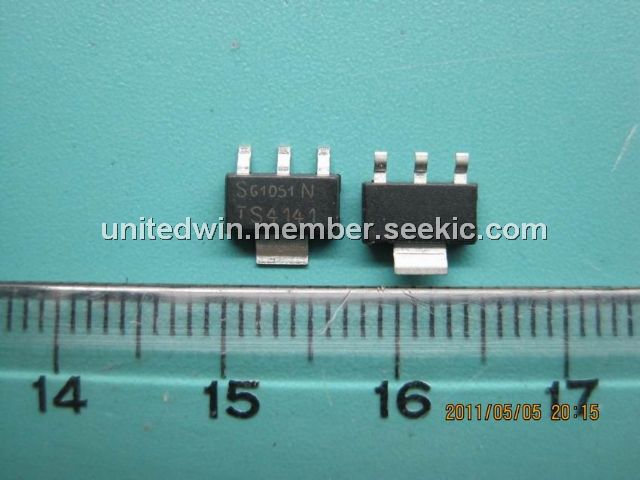

Product Summary

The BTS4141N is a N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. The applications of the BTS4141N include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V and 24 V DC applications, Replaces electromechanical relays and discrete circuits.

Parametrics

BTS4141N absolute maximum ratings: (1)Supply voltage: 48 V; (2)Continuous input voltage: -10 to Vbb V; (3)Load current (Short - circuit current): self limited A; (4)Current through input pin (DC):±5 mA; (5)Reverse current through GND-pin: -0.5 A; (6)Operating temperature: internal limited ℃; (7)Storage temperature: -55 to +150 ℃; (8)Power dissipation: 1.4 W.

Features

BTS4141N features: (1)Short circuit protection; (2)Current limitation; (3)Overload protection; (4)Overvoltage protection (including load dump); (5)Undervoltage shutdown with autorestart and hysteresis; (6)Switching inductive loads; (7)Clamp of negative voltage at output with inductive loads; (8)CMOS compatible input; (9)Thermal shutdown with restart; (10)ESD - Protection; (11)Loss of GND and loss of Vbb protection.

Diagrams

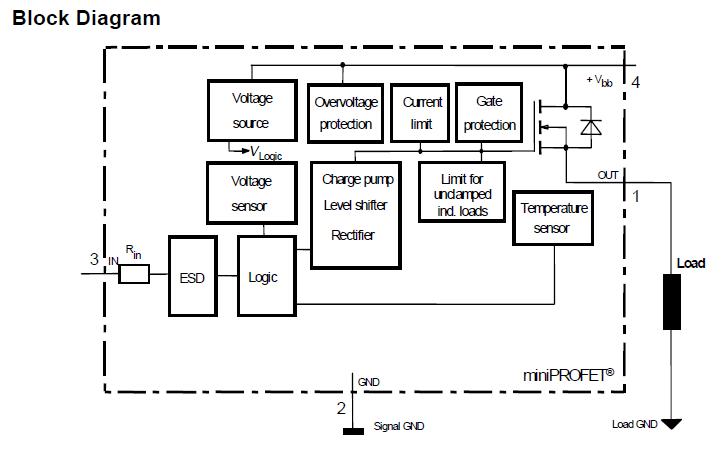

BTS4141N block diagram
