Product Summary

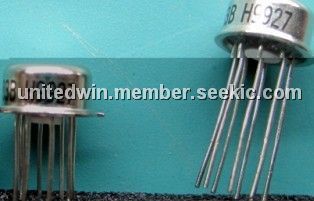

The ICL7662MTV/883B is a monolithic charge pump voltage inverter that will convert a positive voltage in the range of +4.5V to +20V to the corresponding negative voltage of -4.5V to -20V. The ICL7662MTV/883B provides performance far superior to previous implementations of charge pump voltage inverters by combining low quiescent current with high efficiency. The ICL7662MTV/883B has an oscillator, control circuitry, and 4 power MOS switches on-chip, with the only required external components being two low cost capacitors.
Parametrics
ICL7662MTV/883B absolute maximum ratings: (1)V+ TO GND:-0.3V to +22V; (2)Oscillator Input to GND:(V- < 12V):-0.3V to V+ + 0.3V;(V+ > 12V): V+ - 12.3V to V+ + 0.3V; (4)Power Dissipation:Plastic DiP:300mW;SO:500mW;TO-99 :500mW;CERDIP:500mW; (5)Operating Temperature Ranges:-55°C to +125°C; (6)Storage Temperature:-65°C to +160°C; (7)Lead Temperature (soldering, 10sec):+300°C.
Features
ICL7662MTV/883B features: (1)+4.5V to +20V Supply to -4.5V to -20V Output; (2)Cascaded Voltage Multiplication (Vout = -n x V+); (3)99.7% Typical Open Circuit Conversion Efficiency; (4)Requires Only 2 External Capacitors; (5)Pin Compatible with the ICL7660.
