Product Summary

The IXTH67N10 is a MegaMOSFET. The applications of the IXTH75N10 include switch-mode and resonant-mode power supplies, motor controls, uninterruptible power supplies (UPS), DC choppers.

Parametrics

IXTH67N10 absolute maximum ratings: (1)TJ= 25℃ to 150℃, VDSS: 100V; TJ= 25℃ to 150℃; RGS= 1 MΩ, VDGR: 100V; (2)Continuous, VGS: ±20V; Transient, VGSM: ±30V; (3)TC= 25℃, ID25: 67A; TC= 25℃, pulse width limited by TJM, IDM: 268A; (4)TC= 25℃, PD: 300 W; (5)TJ: -55 to +150℃; TJM: 150℃; Tstg: -55 to +150℃; (6)Mounting torque, Md: 1.13/10 Nm/lb.in.; (7)Weight: TO-204= 18g, TO-247= 6g; (8)Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10s: 300℃.

Features

IXTH67N10 features: (1)International standard packages; (2)Low RDS (on) HDMOSTM process; (3)Rugged polysilicon gate cell structure; (4)Low package inductance (< 5 nH) easy to drive and to protect; (5)Fast switching times.

Diagrams

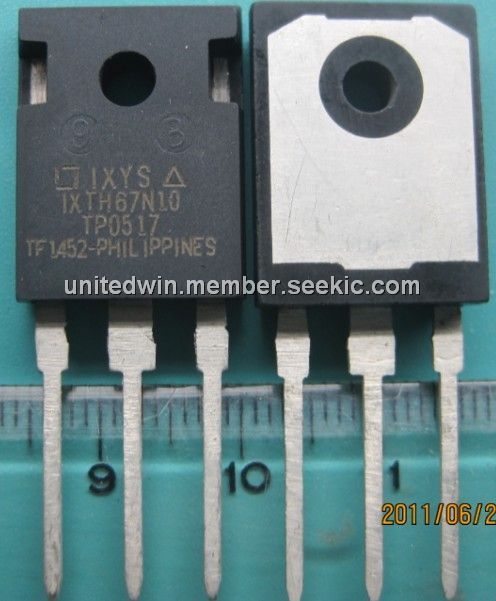

IXTH67N10 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IXTH67N10
IXTH67N10

Ixys

MOSFET 67 Amps 100V 0.025 Rds

Data Sheet

Negotiable
