Product Summary
The UDQ2559LBT quad power driver combines AND logic gates and high-current bipolar outputs with complete output protection. Each of the four outputs will sink 700 mA in the on state. The outputs have a minimum breakdown voltage (load dump) of 60 V and a sustaining voltage of 40 V. The inputs of UDQ2559LBT are compatible with TTL and 5 V CMOS logic systems.
Parametrics
UDQ2559LBT absolute maximum ratings: (1)Output Voltage, VOUT: 60 V; (2)Over-Current Protected Output Voltage, VOUT: 25 V; (3)Output Current, IOUT: 1.0 A; (4)Supply Voltage, VCC: 7.0 V; (5)Input Voltage, VIN or VEN: 7.0 V; (6)Operating Temperature Range, TA: Prefix UDK: -40℃ to +125℃, Prefix UDN: -20℃ to +85℃, Prefix UDQ: -40℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UDQ2559LBT features: (1)700 mA Output Current per Channel; (2)Independent Over-Current Protection for Each Driver; (3)Thermal Protection for Device and Each Driver; (4)Low Output-Saturation Voltage; (5)Integral Output Flyback Diodes; (6)TTL and 5 V CMOS Compatible Inputs; (7)Pin-Compatible With UDQ2543B/EB and UDK2549B/EB.

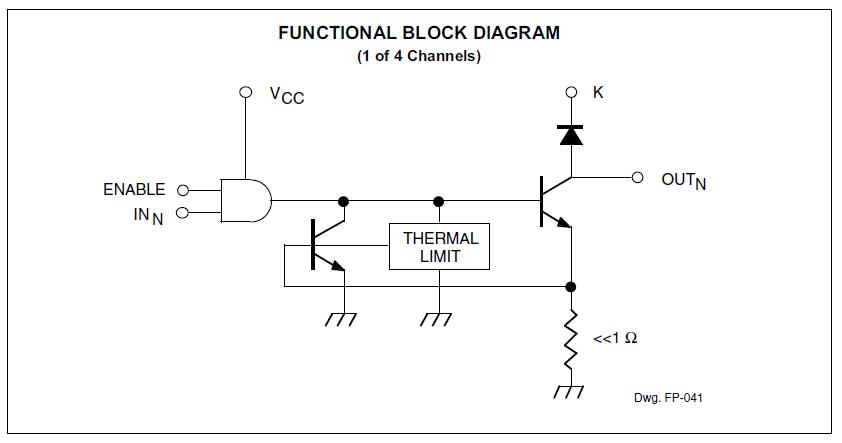

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDQ2559LBTR |
|
IC DRIVER QUAD PROTECTED 16SOIC |
Data Sheet |
Negotiable |
|
||||
|
UDQ2559LBTR-T |
|
IC POWER DRVR PROT QUAD 16SOICW |
Data Sheet |
Negotiable |
|
||||
