Product Summary

The 67600-8002 is a Molex Memory Card Connector.

Parametrics

67600-8002 general specifications: (1)Card Type: SD; (2)Pitch: 2.5 mm ; (3)Orientation: Right Angle; (4)Mounting Style: SMD/SMT; (5)Number of Contacts: 9; (6)Current Rating: 0.5A; (7)Voltage Rating: 250V; (8)Contact Material: Stainless Steel; (9)Insertion - Extraction Style: Push-Push; (10)Mounting Type: Standard; (11)Packaging: Reel; (12)Factory Pack Quantity: 800.

Features

67600-8002 features: (1)Category:Connectors, Interconnects; (2)Card Type:Secure Digital - SD; (3)Number of Positions:12 (9 + 3); (4)Connector Type:Connector and Ejector; (5)Height Above Board:0.110”(2.80mm); (6)Insertion, Removal Method:Push In, Push Out; (7)Mounting Feature:Normal, Standard - Top; (8)Mounting Type:Surface Mount, Right Angle; (9)Features:Switch; (10)Packaging:Cut Tape (CT); (11)Lead Free Status:Lead Free; (12)RoHS Status:RoHS Compliant.

Diagrams

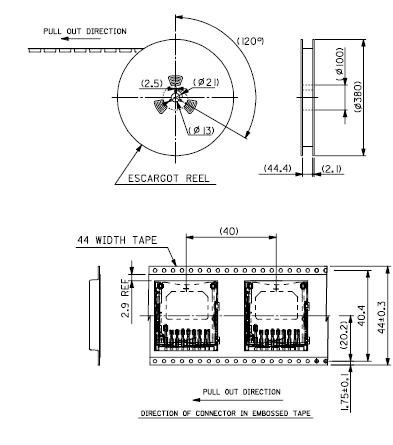

67600-8002 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
67600-8002
67600-8002
Molex
Memory Card Connectors 2.50MM ULTRA LO PRO
Data Sheet
0-1: $4.47
1-10: $3.51
10-25: $2.81
25-50: $2.41
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
67600-0004
67600-0004
Molex
Memory Card Connectors SD Card connector st r std type -Leadfree
Data Sheet
0-1200: $2.54
1200-2000: $2.28
67600-8001
67600-8001
Molex
Memory Card Connectors 9CKT ULTRA LOW PRO
Data Sheet
0-1: $2.96
1-10: $2.87
10-25: $2.79
25-50: $2.71
67600-8002
67600-8002
Molex
Memory Card Connectors 2.50MM ULTRA LO PRO
Data Sheet
0-1: $4.47
1-10: $3.51
10-25: $2.81
25-50: $2.41
67600961
67600961

CONN TERM BLOCK 5.08MM 4POS OR
Data Sheet
0-100: $0.41
67600962
67600962

CONN TERM BLOCK 5.08MM 5POS OR
Data Sheet
0-100: $0.51
67600963
67600963

CONN TERM BLOCK 5.08MM 6POS OR
Data Sheet
0-100: $0.62
