Product Summary
The ADXL202JE is a low-cost, low-power, complete 2-axis accelerometer with a digital output, all on a single monolithic IC. It is an improved version of the ADXL202AQC/JQC. The ADXL202JE will measure accelerations with a full-scale range of ±2 g. The ADXL202JE can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity). The applications of the ADXL202JE include 2-Axis Tilt Sensing with Faster Response than, Electrolytic, Mercury, or Thermal Sensors, Computer Peripherals, Information Appliances, Alarms and Motion Detectors, Disk Drives and Vehicle Security.
Parametrics
ADXL202JE absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered for 0.5ms): 1000 g; (2)Acceleration (Any Axis, Powered for 0.5ms): 500 g; (3)+VS: –0.3 V to +6.0 V; (4)Output Short Circuit Duration, (Any Pin to Common): Indefinite; (5)Operating Temperature: –55 to +125℃; (6)Storage Temperature: –65 to +150℃.
Features
ADXL202JE features: (1)2-Axis Acceleration Sensor on a Single IC Chip; (2)5 mm × 5 mm × 2 mm Ultrasmall Chip Scale Packag; (3)2mg Resolution at 60 Hz; (4)Low-Power < 0.6 mA; (5)Direct Interface to Low-Cost Microcontrollers via Duty Cycle Output; (6)BW Adjustment with a Single Capacitor; (7)3 V to 5.25 V Single Supply Operation; (8)1000 g Shock Survival.

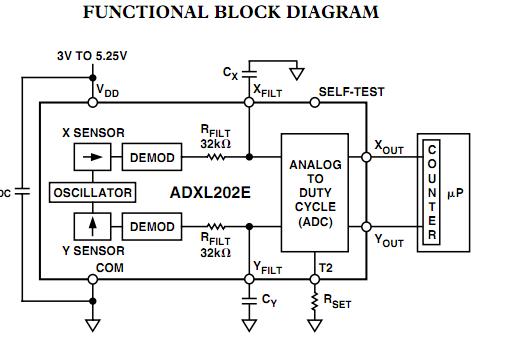

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL202JE |
Analog Devices Inc |
IC ACCELEROMETER LP 8-CLCC |
Data Sheet |
Negotiable |
|
||||
|
ADXL202JE-REEL |
Analog Devices Inc |
IC ACCELER DUAL-AX 2.0G 8PLCC |
Data Sheet |
Negotiable |
|
||||
