Product Summary
The BLW98 is an UHF linear power transistor. N-P-N silicon planar epitaxial transistor primarily intended for use in linear u.h.f. amplifiers of TV transposers and transmitters in band IV-V, as well as for driver stages in tube systems.
Parametrics
BLW98 absolute maximum ratings: (1)Collector-emitter voltage (peak value); VBE = 0 VCESM max.: 50 V; open base, VCEO max.: 27 V; (2)Emitter-base voltage (open collector), VEBO max.: 3,5 V; (3)Collector current,d.c., IC max.: 2 A; (peak value); f > 1 MHz, ICM max.: 4 A; (4)Total power dissipation at Th = 70℃,Ptot max.: 21,5 W; (5)Storage temperature, Tstg: -65 to +150℃; (6)Operating junction temperature, Tj max.: 200℃.
Features
BLW98 features: (1)Diffused emitter ballasting resistors for an optimum temperature profile; (2)Gold sandwich metallization ensures excellent reliability.

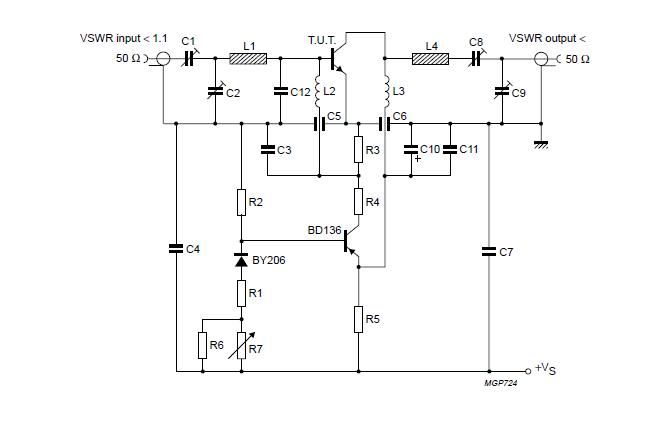

Diagrams
