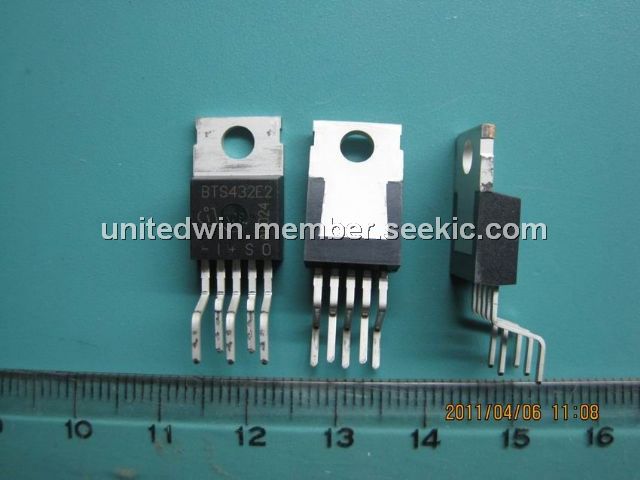

BTS432E2

N channel vertical power FET, TO-220, 63 V, Load dump, Short-circuit protection, Current limitation, Thermal shutdown

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.20~2.70

PartNumber:: BTS432E2

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-02

From Other Seller

Part Number:BTS432E2
US $2.20 - 2.70
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

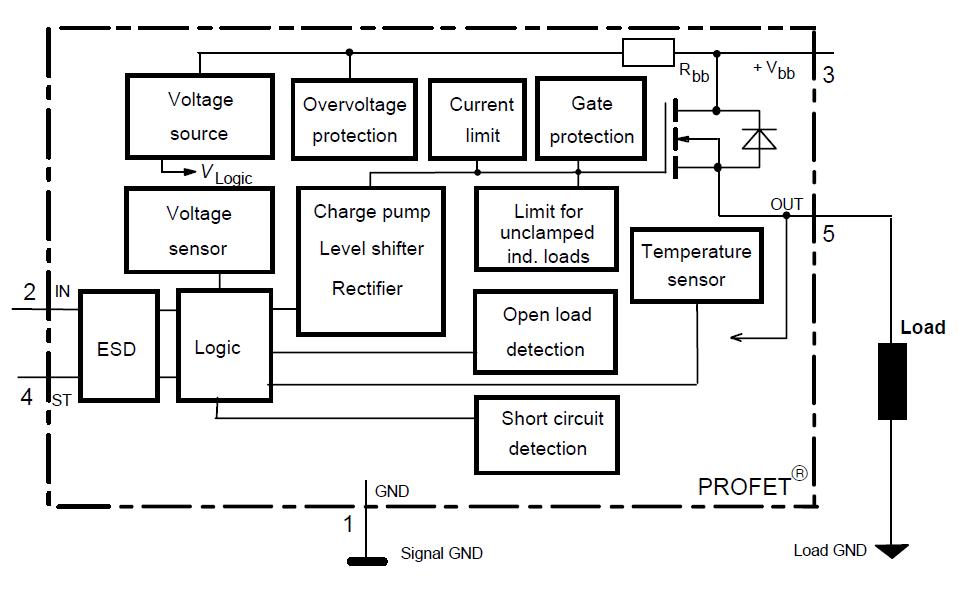

The BTS432E2 is a N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOS chip on chip technology. It provides protective functions. The applications of BTS432E2 include μC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads, Replaces electromechanical relays and discrete circuits.

Parametrics

BTS432E2 absolute maximum ratings: (1)Supply voltage (overvoltage protection): 63 V; (2)Load dump protection VLoadDump = UA + Vs, UA = 13.5 V; (3)RI= 2 Ω, RL= 1.1 Ω, td= 200 ms, IN= low or high: 66.5 V; (4)Load current (Short-circuit current): self-limited A; (5)Operating temperature range: -40 to +150 ℃; (6)Storage temperature range: -55 to +150 ℃; (7)Power dissipation (DC): 125 W; (8)Inductive load switch-off energy dissipation, single pulse Tj=150 ℃: 1.7 J; (9)Electrostatic discharge capability (ESD) (Human Body Model): 2.0 kV; (10)Input voltage (DC): -0.5 to +6 V; (11)Current through input pin (DC): ±5.0 mA; (12)Current through status pin (DC): ±5.0 mA.

Features

BTS432E2 features: (1)Load dump and reverse battery protection; (2)Clamp of negative voltage at output; (3)Short-circuit protection; (4)Current limitation; (5)Thermal shutdown; (6)Diagnostic feedback; (7)Open load detection in ON-state; (8)CMOS compatible input; (9)Electrostatic discharge (ESD) protection; (10)Loss of ground and loss of Vbb protection2); (11)Overvoltage protection; (12)Undervoltage and overvoltage shutdown with autorestart and hysteresis.
