Product Summary

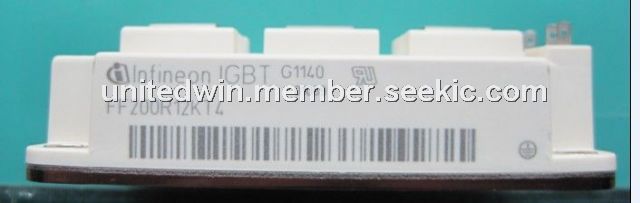

The FF200R12KT4 is an IGBT module with fast trench/fieldstop IGBT4 and optimized EmCon diode.

Parametrics

FF200R12KT4 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 200A; (3)repetitive peak collector current: 400A; (4)total power dissipation: 1100W; (5)gate-emitter peak voltage: ±20V.

Features

FF200R12KT4 features: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 320A.

Diagrams

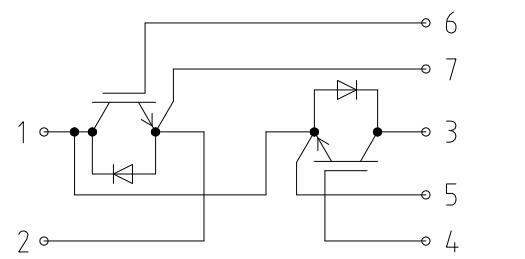

FF200R12KT4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF200R12KT4
FF200R12KT4

Infineon Technologies

IGBT Modules N-CH 1.2KV 320A

Data Sheet

0-6: $79.84
6-10: $72.58
