Product Summary
The IRKE56/04m is an ADD-A-pak GEN V power module. The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of direct bonded copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the IRKE56/04. The Cu baseplate allow an easier mounting on the majority of heatsink with increased tolerance of surface roughness and improve thermal spread.
Parametrics
IRKE56/04 absolute maximum ratings: (1)IF(AV) at 100℃: 60A; (2)IF(RMS): 94A; (3)IFSM at 50Hz: 1600A; at 60Hz 1680A; (4)I2t at 50Hz: 12.89KA2s; at 60Hz: 11.76KA2s; (5)I2√￣t: 128.9 KA2√￣s; (6)VRRM range: 400 to 1600V; (7)TJ: -40 to 150℃; (8)TSTG: -40 to 150℃.
Features
IRKE56/04 features: (1)High Voltage; (2)Industrial Standard Package; (3)Thick Al metal die and double stick bonding; (4)Thick copper baseplate; (5)UL E78996 approved; (6)3500VRMS isolating voltage.

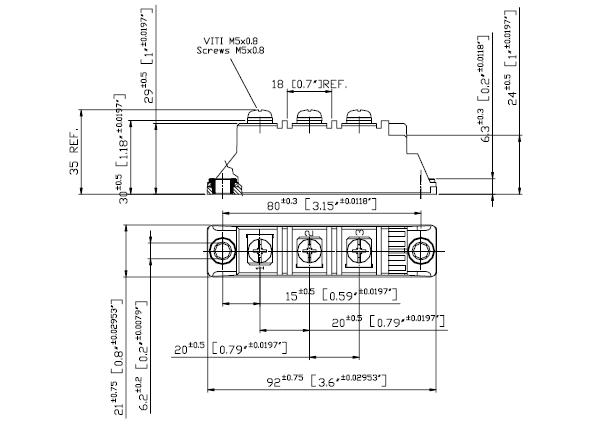

Diagrams
