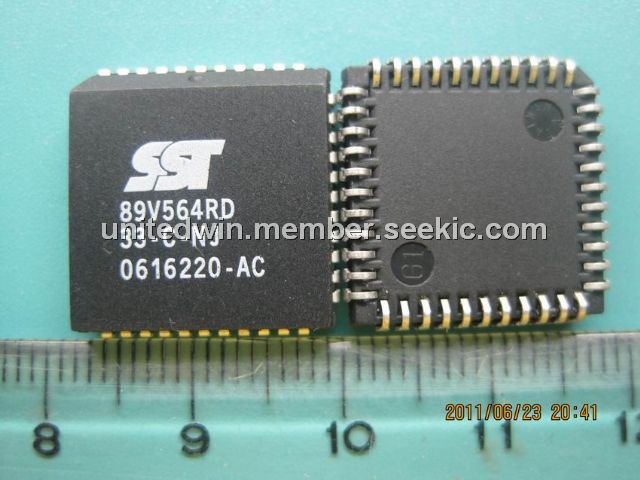

Product Summary
The SST89V564RD-33-C-NJ FlashFlex 8-bit microcontroller is designed and manufactured with SST’s patented and proprietary SuperFlash CMOS semiconductor process technology. The split-gate cell design and thick-oxide tunneling injector offer significant cost and reliability benefits for our customers. The SST89V564RD-33-C-NJ uses the 8051 instruction set and are pin-for-pin compatible with standard 8051 microcontroller devices. The SST89V564RD-33-C-NJ comes with 72/40 KByte of on-chip flash EEPROM program memory which is partitioned into 2 independent program memory blocks. The primary Block 0 occupies 64/32 KByte of internal program memory space and the secondary Block 1 occupies 8 KByte of internal program memory space.
Parametrics
SST89V564RD-33-C-NJ absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on EA# Pin to VSS: -0.5V to +14.0V; (4)D.C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (5)Transient Voltage (<20ns) on Any Other Pin to VSS: -1.0V to VDD+1.0V; (6)Maximum IOL per I/O Pins P1.5, P1.6, P1.7: 20mA; (7)Maximum IOL per I/O for All Other Pins: 15mA; (8)Package Power Dissipation Capability (TA = 25℃): 1.5W; (9)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (10)Surface Mount Solder Reflow Temperature: "with-Pb" units1: 240℃ for 3 seconds, "non-Pb" units: 260℃ for 3 seconds; (11)Output Short Circuit Current: 50 mA.
Features
SST89V564RD-33-C-NJ features: (1)8-bit 8051-Compatible Microcontroller (MCU) with Embedded SuperFlash Memory; (2)SST89E564RD/SST89E554RC Operation: 0 to 40 MHz at 5V; (3)SST89V564RD/SST89V554RC Operation: 0 to 33 MHz at 3V; (4)Total 1 KByte Internal RAM (256 Byte + 768 Byte); (5)Dual Block SuperFlash EEPROM; (6)Support External Address Range up to 64 KByte of Program and Data Memory; (7)Three High-Current Drive Port 1 pins; (8)Three 16-bit Timers/Counters.

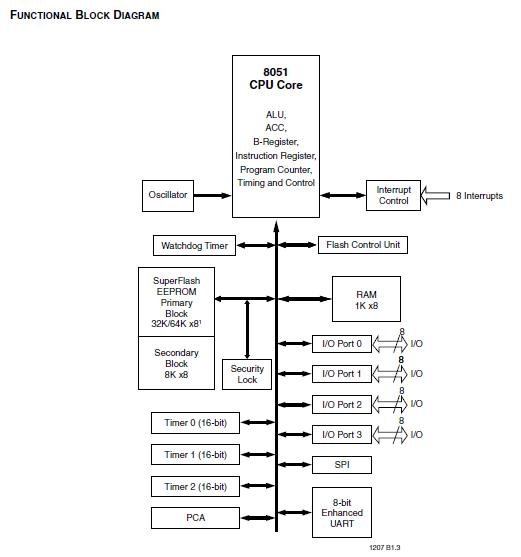

Diagrams
