Product Summary

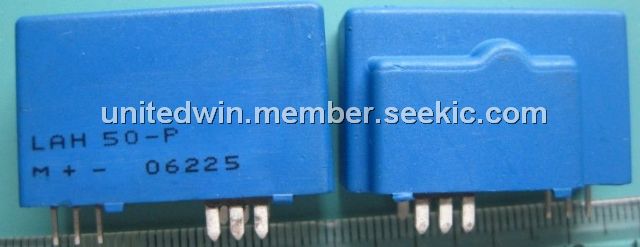

The LAH 50-P is a current transducer. The applications of the LAH25-NP include AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, uninterruptible power supplies (UPS), switched mode power supplies (SMPS), power supplies for welding applications.
Parametrics
LAH 50-P absolute maximum ratings: (1)Ambient operating temperature, TA: - 25 to + 85℃; (2)Ambient storage temperature, TS: - 40 to + 90℃; (3)Secondary coil resistance: at TA= 70℃, RS: 135Ω; at TA = 85℃, RS: 142Ω; insulating material group: I; (4)Mass, m: 22g.
Features
LAH 50-P features: (1)Closed loop (compensated) multirange current transducer using the Hall effect; (2)Printed circuit board mounting; (3)Insulated plastic case recognized according to UL 94-V0.

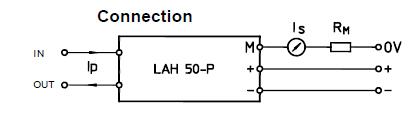

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LAH50-P |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LAH50-P |
Other |
|
Data Sheet |
Negotiable |
|
||||
