Product Summary

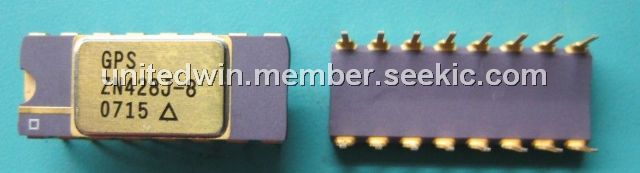

The ZN428J8 is a monolithic 8-bit D-A converter with input latches to facilitate updating from a data bus. The latch is transparent when enable is LOW and the data is held when enable is taken HIGH.The ZN428J8 also contains a 2.5V reference the use of which is pin optional to retain flexibility.
Parametrics
ZN428J8 absolute maximum ratings: (1)Supply voltage, VCC: +7.0V; (2)Max.voltage, logic and VREF inputs: +VCC; (3)Operating temperature range: -55℃ to +125℃ ; (4)Storage temperature range: -55℃ to +125℃ ; (5)Analog ground to digital ground: ±200mV.
Features
ZN428J8 features: (1)Contains DAC with data latch and on-chip reference; (2)Guaranteed monotonic over the full operating temperature range; (3)Single +5V supply; (4)Microprocessor compatible; (5)TTL and 5V CMOS compatible; (6)800ns settling time; (7)Complementary to ZN427 A to D series; (8)Commercial or military temperature range.

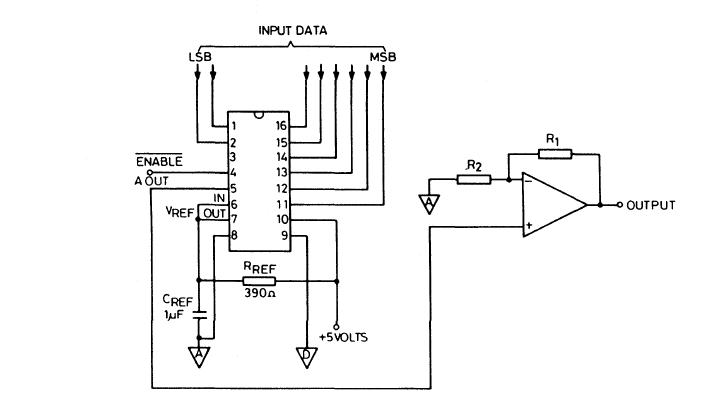

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZN428J8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
