MC33151DR2G

high speed driver, SOP8, 20 V, 1.5 A, Pb-Free Packages, Independent Channels

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.80

PartNumber:: MC33151DR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-02

From Other Seller

Part Number:MC33151DR2G
US $0.50 - 0.80
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

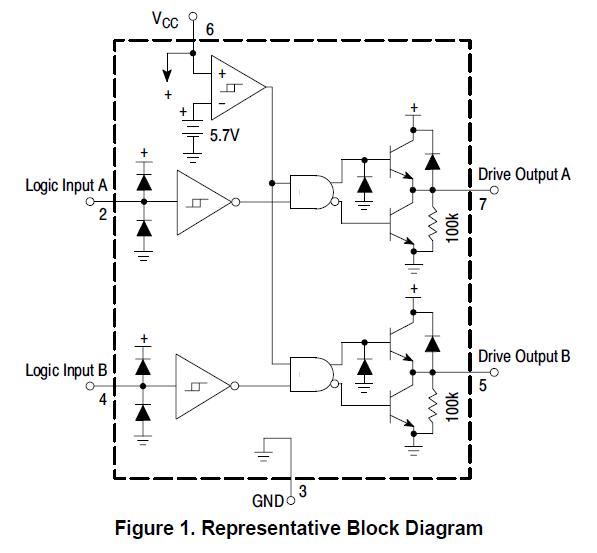

The MC33151DR2G is a dual inverting high speed driver specifically designed for applications that require low current digital circuitry to drive large capacitive loads with high slew rates. It features low input current making it CMOS and LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time, and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an undervoltage lockout with hysteresis to prevent erratic system operation at low supply voltages. Typical applications of MC33151DR2G include switching power supplies, dc to dc converters, capacitor charge pump voltage doublers/inverters, and motor controllers.

Parametrics

MC33151DR2G absolute maximum ratings: (1)Power Supply Voltage: 20 V; (2)Logic Inputs: -0.3 to VCC V; (3)Drive Outputs: Totem Pole Sink or Source Current: 1.5 A, Diode Clamp Current (Drive Output to VCC): 1.0 A; (4)Power Dissipation and Thermal Characteristics D Suffix SOIC.8 Package Case 751 Maximum Power Dissipation @ TA = 50℃: 0.56 W; (5)Thermal Resistance, Junction-to-Air: 180 ℃/W; (6)P Suffix 8.Pin Package Case 626 Maximum Power Dissipation @ TA = 50℃: 1.0 W; (7)Thermal Resistance, Junction-to-Air: 100 ℃/W; (8)Operating Junction Temperature: +150 ℃; (9)Operating Ambient Temperature: -40 to +85 ℃; (10)Storage Temperature Range: -65 to +150 ℃.

Features

MC33151DR2G features: (1)Pb-Free Packages are Available; (2)Two Independent Channels with 1.5 A Totem Pole Output; (3)Output Rise and Fall Times of 15 ns with 1000 pF Load; (4)CMOS/LSTTL Compatible Inputs with Hysteresis; (5)Undervoltage Lockout with Hysteresis; (6)Low Standby Current; (7)Efficient High Frequency Operation; (8)Enhanced System Performance with Common Switching Regulator Control ICs; (9)Pin Out Equivalent to DS0026 and MMH0026.
