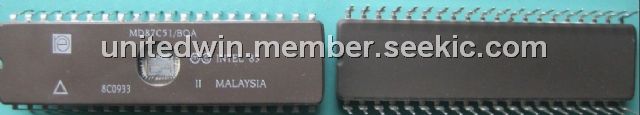

Product Summary

The MD87C51/BQA is an EPROM version of the M80C51BH. It is fabricated on Inters CHMOS ll-E process. It contains 4 Kbytes of on-chip program memory that can be electrically programmed, and can be erased by exposure to ultraviolet light. The MD87C51/BQA EPROM array uses a modified Quick-Pulse ProgrammingtM algorithm, by which the entire 4 Kbyte array can be programmed in about 12 seconds.


MD87C51/BQA absolute maximum ratings: (1)Case Temperature Under Bias:-55°C to +125°C; (2)Storage Temperature :-65°C to +150°C; (3)Voltage on EA/Vpp Pin to Vss:0V to + 13.0V; (4)Voltage on Any Other Pin to Vss:- 0.5V to +6.5V; (5)Power Dissipation:1.5W.


MD87C51/BQA features: (1)High Performance CHMOS EPROM; (2)Programmable Serial Channel; (3)Quick-Pulse Programming Algorithm ; (4)2-Level Program Memory Lock Boolean Processor; (5)128-Byte Data RAM; (6)32 Programmable I/O Lines; (7)Two 16-Bit Timer/Counters; (8)5 Interrupt Sources; (9)Available in 40-Pin CERDIP, 44-PinLeadless Chip Carrier, 44-Pin Gull-wing and 44-Pin J-Lead Packages; (10)TTL- and CMOS-Compatible Logic Levels; (11)64K External Program Memory Space; (12)64K External Data Memory Space; (13)IDLE and POWER DOWN Modes; (14)ONCE Mode Facilitates System Testing; (15)Military Temperature Range:-55°C to +125°C.


MD87C51/BQA Pin Connection
