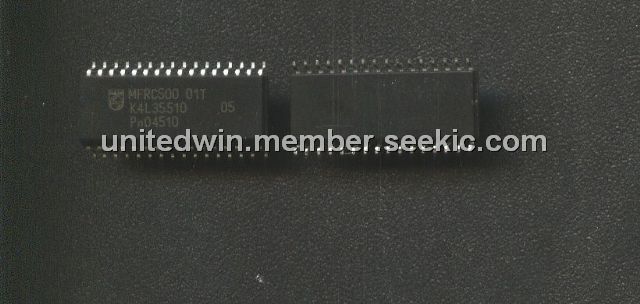

Product Summary

The MFRC50001T is a highly integrated reader IC for contactless communication on 13,56MHz. This new reader IC utilises an outstanding modulation and demodulation concept completely integrated for all major kinds of passive contactless communication methods and protocols on 13,56MHz. The MFRC50001T supports all layers of ISO14443A. The internal transmitter part is able to drive a proximity antenna (up to 100mm) directly without additional active circuitry. The applications of the MFRC50001T include Public transport terminals, Handheld terminals, On board units, Contactless PC terminals, Metering, Contactless public phones.

Parametrics

MFRC50001T absolute maximum ratings: (1)Digital Supply Voltage: 4.5 V min, 5.0 V typ and 5.5 V max; (2)Analog Supply Voltage: 4.5 V min, 5.0 V typ and 5.5 V max; (3)Transmitter Supply Voltage: 3.3 V min, 5.0 V typ and 5.5 V max; (4)Operating Digital Supply Current: 6 mA; (5)Operating Analog Supply Current: 25 mA; (6)Operating Buffered Antenna Driver Supply Current: 150 mA.

Features

MFRC50001T features: (1)Highly integrated analog circuitry to decode card response; (2)Buffered output drivers to connect an antenna with minimum number of external components; (3)Proximity operating distance (up to 100 mm); (4)Fast internal oscillator buffer to connect 13.56 MHz quartz; (5)Clock frequency monitoring; (6)Hard reset with low power functions; (7)Power down mode per software Parallel μController interface with internal address latch and IRQ line; (8)Automatic detection of parallel μC interface type; (9)Comfortable send and receive FIFO buffer; (10)Anti-collision procedure support; (11)Bit- and byte-oriented framing; (12)Unique serial number.

Diagrams

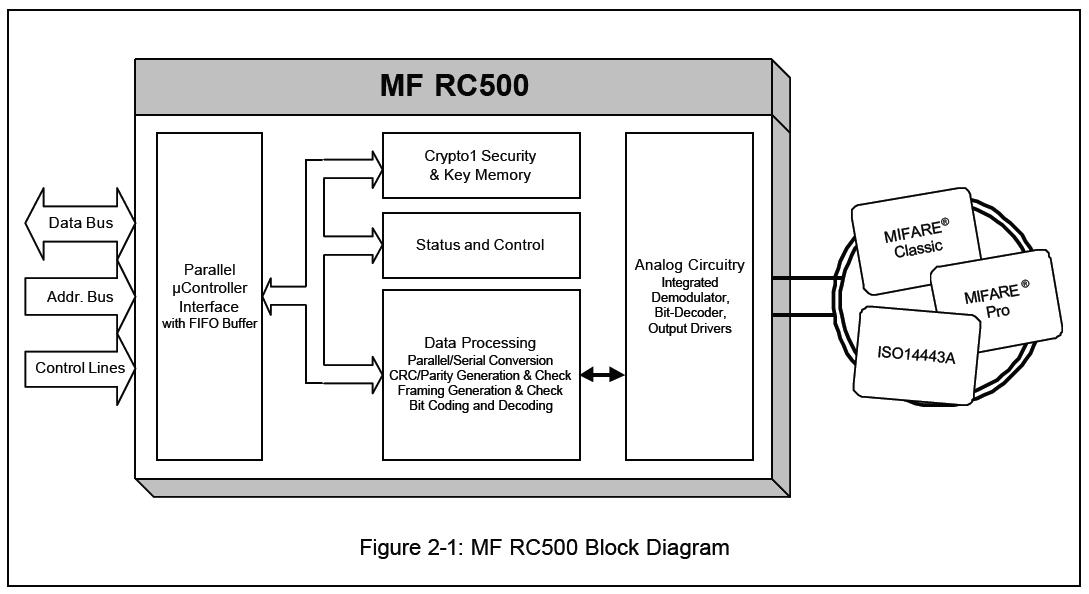

MFRC50001T block diagram
