S29GL128M10FAIR10

S29GL128M10FAIR10, only page mode flash memory, 200mA, 4V, FBGA-64

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: S29GL128M10FAIR10

Brand:: SPANSION - spansion | Pack: FBGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:S29GL128M10FAIR10
US $1.00 - 2.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

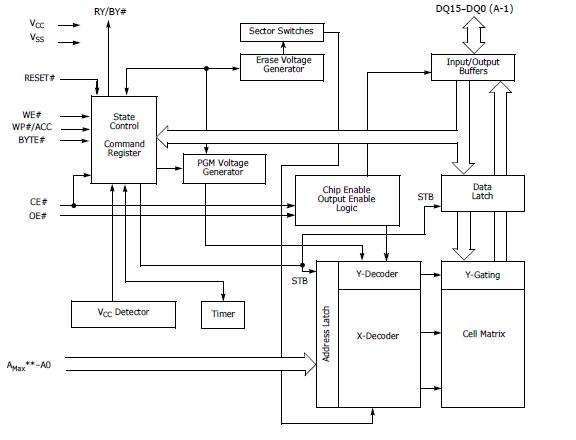

The S29GL128M10FAIR10 is a 3.0 V single power Flash memory manufactured using 0.23 um MirrorBit technology. The S29GL128M10FAIR10 is a 128 Mbit, organized as 8,388,608 words or 16,777,216 bytes. The device has an 8-bit wide data bus only, 16- bit wide data bus only, or a 16-bit wide data bus that can also function as an 8- bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL128M10FAIR10 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: -0.5 V to +4.0 V; A9, OE#, ACC and RESET#: -0.5 V to +12.5 V; all other pins: -0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

S29GL128M10FAIR10 features: (1)Software features: Program Suspend & Resume: read other sectors before programming operation is completed; Erase Suspend & Resume: read/program other sectors before an erase operation is completed; Data# polling & toggle bits provide status; CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; Unlock Bypass Program command reduces overall multiple-word programming time; (2)Hardware features: Sector Group Protection: hardware-level method of preventing write operations within a sector group; Temporary Sector Unprotect: VID-level method of charging code in locked sectors; WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings on uniform sector models; Hardware reset input (RESET#) resets device; Ready/Busy# output (RY/BY#) detects program or erase cycle completion.
