Product Summary
The MC100EL16DR2 is a differential receiver. The MC100EL16DR2 is functionally equivalent to the E116 device with higher performance capabilities. With output transition times significantly faster than the E116, the EL16 is ideally suited for interfacing with high frequency sources. The VBB pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage. VBB may also rebias AC coupled inputs. When used, decouple VBB and VCC via a 0.01 μF capacitor and limit current sourcing or sinking to 0.5 mA. When not used, VBB should be left open. Under open input conditions (pulled to VEE) internal input clamps will force the Q output LOW. The MC100EL16DR2 contains temperature compensation.
Parametrics
MC100EL16DR2 absolute maximum ratings: (1)PECL Mode Power Supply: 8 V at VEE = 0 V; (2)NECL Mode Power Supply: -8 V at VCC = 0 V; (3)PECL Mode Input Voltage: 6 V at VEE = 0 V, VI ≤ VCC; (4)NECL Mode Input Voltage: -6 V at VCC = 0 V, VI ≥ VEE; (5)Output Current: 50 mA; (6)VBB Sink/Source: ± 0.5 mA; (7)Operating Temperature Range: -40 to +85 ℃; (8)Storage Temperature Range: -65 to +150 ℃; (9)Thermal Resistance (Junction-to-Ambient): 190 ℃/W; (10)Thermal Resistance (Junction-to-Case): 41 to 44 ℃/W; (11)Thermal Resistance (Junction-to-Ambient): 185 ℃/W; (12)Thermal Resistance (Junction-to-Case): 41 to 44 ± 5% ℃/W; (13)Wave Solder <2 to 3 sec @ 248℃: 265 ℃.
Features
MC100EL16DR2 features: (1)190 ps Propagation Delay; (2)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (3)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V; (4)Internal Input Pulldown Resistors.

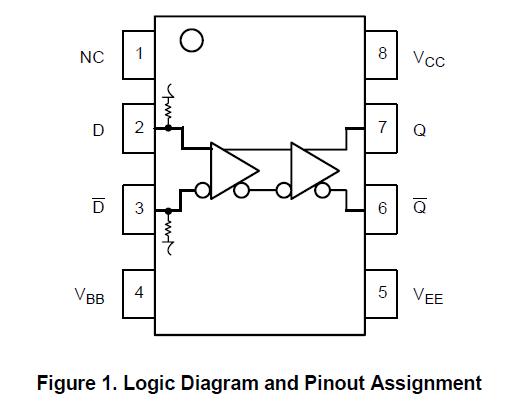

Diagrams
| Image | Part No | Mfg | Description |  |
