Product Summary

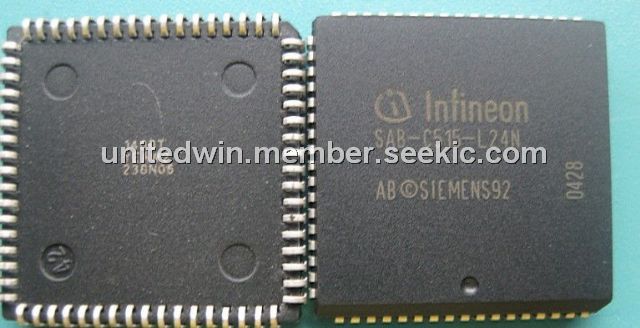

The SAB-C515-L24N is an upward compatible version of the SAB 80C515A 8-bit microcontroller which additionally provides ALE switch-off capability, on-chip emulation support, ROM protection, and slow down mode capability. With a maximum external clock rate of 24 MHz it achieves a 500 ns instruction cycle time (1ms at 12 MHz). The SAB-C515-L24N is mounted in a P-MQFP-80 package.
Parametrics
SAB-C515-L24N absolute maximum ratings: (1)Ambient temperature under bias (TA): -40 to 110℃; (2)Storage temperature (Tstg): -65℃ to 150℃; (3)Voltage on VCC pins with respect to ground (VSS): -0.5V to 6.5V; (4)Voltage on any pin with respect to ground (VSS): -0.5V to VCC +0.5 V; (5)Input current on any pin during overload condition: -10mA to 10mA; (6)Absolute sum of all input currents during overload condition: I 100mA I; (7)Power dissipation: TBD.
Features
SAB-C515-L24N features: (1)8-bit A/D converter: 8 multiplexed analog inputs; Programmable reference voltages; (2)16-bit watchdog timer; (3)Power saving modes: Idle mode; Slow down mode (can be combined with idle mode); Software power-down mode; (4)12 interrupt sources (7 external, 5 internal) selectable at four priority levels; (5)On-chip emulation support logic (Enhanced Hooks Technology TM); (6)ALE switch-off capability; (7)P-MQFP-80-1 package; (8)Temperature Ranges: TA= 0 to 70℃(max. operating frequency: 16MHz).
Diagrams
 |
