Product Summary

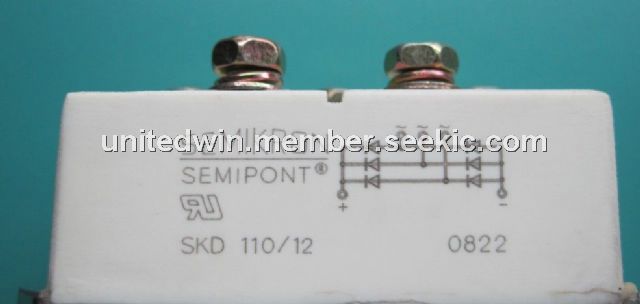

The SKD110-12 is a power bridge rectifier. The applications of the SKD110-12 include three phase rectifiers for power supplies, input rectifiers for variable frequency drivers, rectifiers for DC motor filed supplies, battery charger rectifiers.

Parametrics

SKD110-12 absolute maximum ratings: (1)Tc= 85℃,ID: 151A; Ta= 45℃, chassis, ID: 28A; Ta= 45℃, P1/200, ID: 70A; Ta= 35℃, P1/120F, ID: 110A; Ta= 35℃, P3/120F, ID: 123A; (2)Tvj= 25℃, 10ms, IFSM: 1200A; Tvj= 150℃, 10ms, IFSM: 1000A; Tvj= 25℃, 8.3 to 10ms, i2T: 7200A2S; Tvj= 150℃, 8.3 to 10ms, IFSM: 5000A; (3)Tvj= 25℃,IF= 300A, VF: max.1.9V; Tvj= 150℃, V(TO): max.0.85V; Tvj= 150℃, rT: max.4mΩ; Tvj= 25℃, VDD=VDRM, VRD=VRRM, IRD: max.0.5mA; Tvj= 150℃, VRD=VRRM, IRD: 5mA; (4)Tvj: -40 to +150℃; Tstg: -40 to +120℃; (5)a.c. 50Hz, r.m.s., 1s/1min, Visol: 3600(3000)V ; (6)To heatsink, Ms: 5±15% Nm; To terminals, Mt: 5±15% Nm.

Features

SKD110-12 features: (1)Robust plastic case with screw terminals; (2)Large isolated metal base plate; (3)Blocking voltage up to 1800V; (4)High surge current; (5)Three phase bridge rectifier; (6)easy chassis mounting; (7)UL recognized, file no.E63532.

Diagrams

SKD110-12 circuit diagram
