Product Summary

The AD9051BRSZ is a complete 10-bit monolithic sampling analogto-digital converter (ADC) with an onboard track-and-hold and reference. The unit is designed for low cost, high performance applications and requires only +5 V and an encode clock to achieve 60 MSPS sample rates with 10-bit resolution. The applications of the AD9051BRSZ include Medical Imaging, Digital Communications, Professional Video, Instrumentation, Set-Top Box.

Parametrics

AD9051BRSZ absolute maximum ratings: (1)VD, VDD: +7 V; (2)Analog Inputs: –0.5 V to VD + 0.5 V; (3)Digital Inputs: –0.5 V to VD; (4)VREF Input: –0.5 V to VD; (5)Digital Output Current: 20 mA; (6)Operating Temperature: –55℃ to +125℃; (7)Storage Temperature: –65℃ to +150℃; (8)Maximum Junction Temperature: +175℃; (9)Maximum Case Temperature: +150℃.

Features

AD9051BRSZ features: (1)60 MSPS Sampling Rate; (2)9.3 Effective Number of Bits at fIN = 10.3 MHz; (3)250 mW Total Power at 60 MSPS; (4)Selectable Input Bandwidth of 50 MHz or 130 MHz; (5)On-Chip T/H and Voltage Reference; (6)Single +5 V Supply Voltage; (7)+5 V or +3 V Logic I/O Compatible; (8)Input Range and Output Coding Options Available.

Diagrams

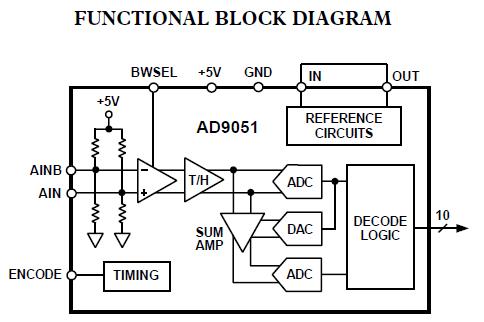

AD9051BRSZ block diagram
