Product Summary

The ST62T65CM6 device is a low cost 8-bit HCMOS microcontroller, which is targeted at low to medium complexity applications. It is based on a building block approach: a common core is surrounded by a number of on-chip peripherals. The ST62T65CM6 is the erasable EPROM version of the ST62T65C device, which may be used to emulate the ST62T55C and ST62T65C device, as well as the respective ST6255C and ST6265C ROM devices.

Parametrics

ST62T65CM6 absolute maximum ratings: (1)Supply Voltage: -0.3 to 7.0 V; (2)Input Voltage: VSS - 0.3 to VDD + 0.3(1) V; (3)Output Voltage: VSS - 0.3 to VDD + 0.3(1) V; (4)Total Current into VDD (source): 80 mA; (5)Total Current out of VSS (sink): 100 mA; (6)Junction Temperature: 150 ℃; (7)Storage Temperature: -60 to 150 ℃.

Features

ST62T65CM6 features: (1)3.0 to 6.0V Supply Operating Range; (2)8 MHz Maximum Clock Frequency; (3)-40 to +125℃ Operating Temperature Range; (4)Run, Wait and Stop Modes; (5)5 Interrupt Vectors; (6)Look-up Table capability in Program Memory; (7)Data Storage in Program Memory: User selectable size; (8)Data RAM: 128 bytes; (9)Data EEPROM: 128 bytes (none on ST62T55C); (10)User Programmable Options; (11)21 I/O pins, fully programmable as: Input with pull-up resistor, Input without pull-up resistor, Input with interrupt generation, Open-drain or push-pull output, Analog Input.

Diagrams

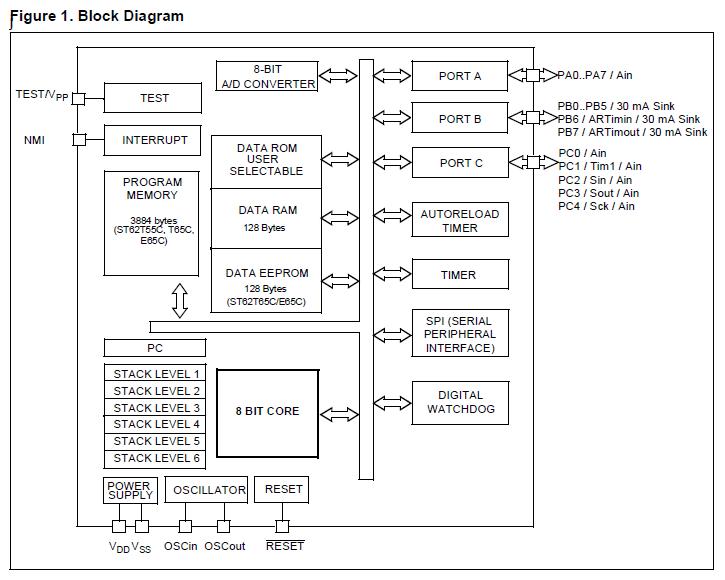

ST62T65CM6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ST62T65CM6
ST62T65CM6

STMicroelectronics

8-bit Microcontrollers (MCU) OTP EPROM 4K SPI

Data Sheet

0-435: $2.63
435-500: $2.32
500-1000: $2.17
1000-2000: $2.11
