Product Summary

The MURD620CTT4G is a Power Rectifier, which is designed for use in switching power supplies, inverters and as free wheeling diodes.

Parametrics

MURD620CTT4G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 200 V; (2)Working Peak Reverse Voltage: 200 V; (3)DC Blocking Voltage: 200 V; (4)Average Rectified Forward Current (Rated VR, TC = 140℃) Per Diode: 3.0 A, Per Device: 6.0 A; (5)Peak Repetitive Forward Current (Rated VR, Square Wave,; (6)20 kHz, TC = 145℃) Per Diode: 6.0 A; (7)Non.Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, 60 Hz): 50 A; (8)Operating Junction and Storage: -65 to +175 ℃; (9)Temperature Range: -65 to +175 ℃.

Features

MURD620CTT4G features: (1)Pb-Free Packages are Available; (2)Ultrafast 35 Nanosecond Recovery Time; (3)Low Forward Voltage Drop; (4)Low Leakage.

Diagrams

MURD620CTT4G marking diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

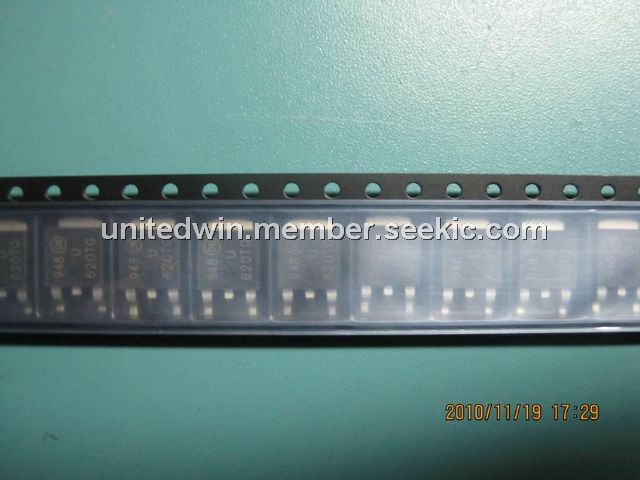

MURD620CTT4G
MURD620CTT4G

ON Semiconductor

Rectifiers 200V 6A Ultrafast

Data Sheet

0-1: $0.40
1-25: $0.31
25-100: $0.27
100-500: $0.20
