Product Summary

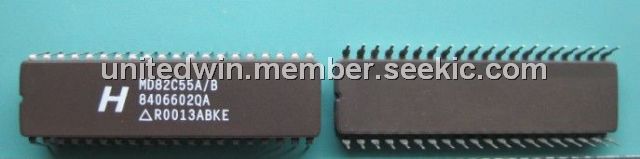

The 8406602QA is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 8406602QA make it compatible with the 80C86, 80C88 and other microprocessors.

Parametrics

8406602QA absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC+0.5V; (3)Voltage Range: +4.5V to 5.5V.

Features

8406602QA features: (1)Pin Compatible with NMOS 8255A; (2)24 Programmable I/O Pins; (3)Fully TTL Compatible; (4)High Speed, No Wait State Operation; (5)Direct Bit Set/Reset Capability; (6)Enhanced Control Word Read Capability; (7)L7 Process; (8)2.5mA Drive Capability on All I/O Ports; (9) Low Standby Power (ICCSB): 10μA.

Diagrams

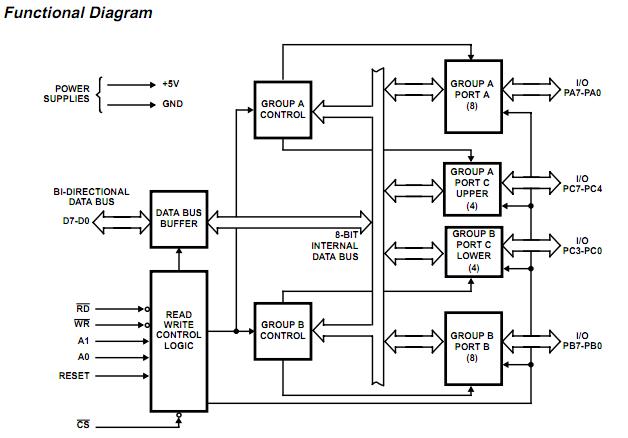

8406602QA functional diagram

8406
8406
Heyco
Cable Mounting & Accessories 1" BLACK STRAIGHT
Data Sheet
0-1: $1.76
1-10: $1.58
10-50: $1.42
50-100: $1.28
8406 010100
8406 010100
Belden Wire & Cable
Multi-Conductor Cable 24AWG 3C SHIELD 100ft SPOOL BLACK
Data Sheet
0-1: $252.25
1-2: $227.32
2-5: $207.88
5-10: $197.47
8406-0010
8406-0010
Coto Technology
Reed Relay REED RELAY
Data Sheet
Negotiable
8406010150
8406010150
Laird Technologies
EMI Gaskets & Grounding Pads UFSF BeCu BF PSA RL 0.375X0.062in PerFT
Data Sheet
0-150: $5.99
840620
840620

FUSE COVER .24 X .79 X .5"
Data Sheet
0-25: $0.30
25-100: $0.25
100-1000: $0.18
1000-5000: $0.14
5000-10000: $0.12
10000-25000: $0.10
25000-50000: $0.07
84065131
84065131

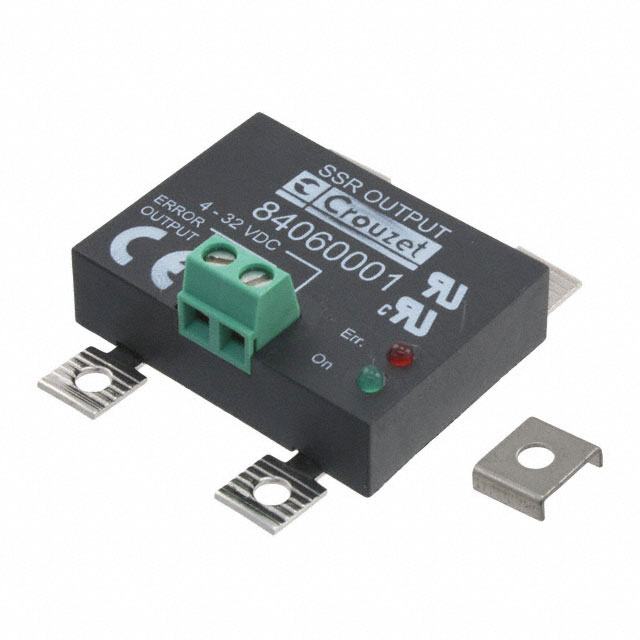

RELAY SSR SPST-NO
