Product Summary

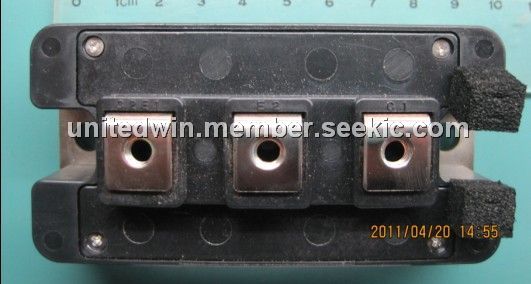

The CM150DY-12NF is an insulated gate bipolar transistor. The applications of the CM150DY-12NF include general purpose inverters & servo controls, etc.

Parametrics

CM150DY-12NF absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 600A; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current: DC, TC’=97℃, IC:150A; Pulse, ICM:300A; (4)Emitter current: IE: 150A; Pulse, IEM: 300A; (5)Maximum collector dissipation, TC = 25℃, PC: 590W; (6)Junction temperature, Tj: －40 to +150℃; (7)Storage temperature, Tstg: －40 to +125℃; (8)Isolation voltage, Main Terminal to base plate, AC 1 min., Viso: 2500V; (9)Torque strength: Main Terminal M5: 2.5 to 3.5N ·m; Mounting holes M6: 3.5 to 4.5N ·m; (10)Weight, Typical value: 310g.

Features

CM150DY-12NF features: (1)IC: 150A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

CM150DY-12NF circuits diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM150DY-12NF
CM150DY-12NF

IGBT MOD DUAL 600V 150A NF SER
Data Sheet
0-1: $55.63
1-10: $52.16
10-100: $46.94
100-250: $45.20
250-500: $44.51
500-1000: $42.42
1000-2500: $41.72
