DAC811AH

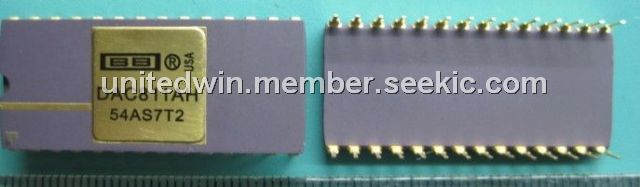

DAC811AH, CDIP-28, 12-bit digital-to-analog converter, 18V, 15mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: DAC811AH

Brand:: Burr-Brown Corporation - BB | Pack: CDIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:DAC811AH
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DAC811AH is a complete, single-chip integrated-circuit, microprocessor-compatible, 12-bit digital-toanalog converter. The DAC811AH combines a precision voltage reference, microcomputer interface logic, and double-buffered latch, in a 12-bit D/A converter with a voltage output amplifier. Fast current switches and a laser-trimmed thin-film resistor network provide a highly accurate and fast D/A converter.

Parametrics

DAC811AH absolute maximum ratings: (1)+VCC: 0 to +18V; (2)-VCC to ACOM: 0 to -18V; (3)VDD to DCOM: 0 to +7V; (4)VDD to ACOM: ±7V; (5)ACOM to DCOM: ±7V; (6)Digital inputs (Pins 2–14, 16–19) to DCOM: -0.4V to +18V; (7)External voltage applied to 10v range resistor: ±12V; (8)Ref out: indefinite short to ACOM; (9)External voltage applied to DAC output: -5V to +5V; (10)Power dissipation: 1000mW; (11)Lead temperature (soldering, 10s): +300℃; (12)Max junction temperature: +165℃; (13)Thermal resistance, θJ-A: plastic DIP and SOIC: 100℃/W; (14)Ceramic DIP: 65℃/W.

Features

DAC811AH features: (1)Single integrated circuit chip; (2)Microcomputer interface: double-buffered latch; (3)Voltage output: ±10V, ±5V, +10V; (4)Monotonicity guaranteed over temperature; (5)±1/2LSB maximum nonlinearity over temperature; (6)Guaranteed specifications at ±12V and ±15V supplies; (7)TTL/5V CMOS-compatible logic inputs.
