Product Summary

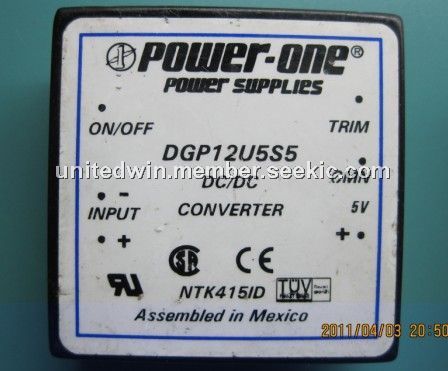

The DGP12U5S5 is a DC/DC converter & regulator, designed to operate on ultra-wide input voltages from 3.5 to 16 volts, and with remote ON/OFF capability, the DGP12U5S5 supplies power from battery or system sources . The output of the converter is electrically isolated, thereby allowing the output to be configured as a positive or negative output voltage. The fully isolated, shielded case allows precise operation in sensitive environments.
Parametrics
DGP12U5S5 absolute maximum ratings: (1)Voltage range: 3.5V to 16V ; (2)Input current: full load, TYP: 2880mA; no load: 10mA; (3)Switching frequency, TYP: 60 kHz; (4)Maximum input overvoltage, 100ms maximum, MAX: 20VDC; (5)Turn-on time, 1% output error, TYP: 10ms; (6)Output voltage: 5V; (7)Output voltage accuracy: 4.95 to 5.05V; (8)Rated load range: 0 to 2A; (9)Load regulation 25% Max load-Max load: 0.3 to 0.7%; (10)Line regulation Vin=Min-Max VDC: 0.1 to 0.2%; (11)Short term stability: < 0.05%/24Hrs; (12)Long term stability: < 0.1%/kHrs; (13)Noise ,peak-peak RMS noise: 50mVPP to 10mVrms; (14)Temperature coefficient: 50-100ppm/℃; (15)Short circuit protection +OUT to -OUT: short term current limit.
Features
DGP12U5S5 features: (1)Up to 12 watts output power; (2)Five-side shielded isolated copper case; (3)Ultra-wide 3.5 to 16 Volt input range; (4)Efficiencies to 82%; (5)Fully isolated and filtered; (6)700V isolation; (7)Remote ON/OFF and TRIM.
