Product Summary

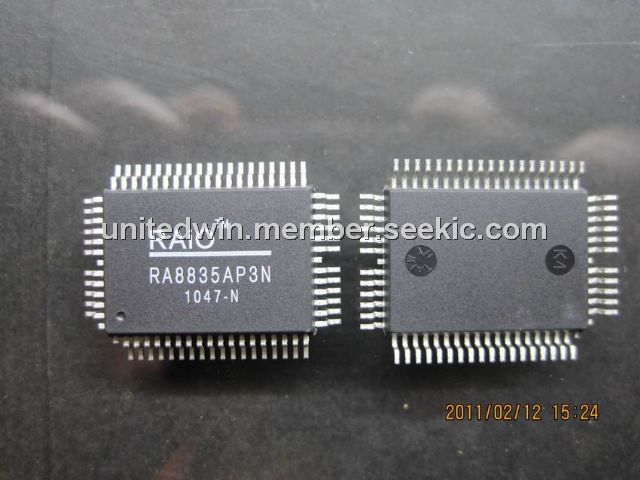

The RA8835AP3N is a controller IC that can display text and graphics on LCD panel. It can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The RA8835AP3N also stores text, character codes and bitmapped graphics data in external frame buffer memory. Display controller functions include transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels and generating timing signals for the buffer memory, LCD panel. The RA8835AP3N has an internal character generator with 160, 5x7 pixel characters in internal mask ROM. The character generators support up to 64, 8x16 pixel characters in external character generator RAM and up to 256, 8x16 pixel characters in external character generator ROM.
Parametrics
RA8835AP3N absolute maximum ratings: (1)Supply voltage range: –0.3 to 7.0 V; (2)Input voltage range: –0.3 to VDD+ 0.3 V; (3)Power dissipation: 300 mW; (4)Operating temperature range: –20 to 75 ℃; (5)Storage temperature range: –65 to 150 ℃; (6)Soldering temperature (10 seconds): 260 ℃.
Features
RA8835AP3N features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)Up to 640x256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 640x256 pixel LCD panel display resolution memory; (8)160, 5x.7 pixel characters in internal maskprogrammed character generator ROM; (9)Up to 64, 8x16 pixel characters in external character generator RAM; (10)Up to 256, 8x16 pixel characters in external character generator ROM; (11)6800 and 8080 family microprocessor interfaces; (12)Low power consumption: 3.5mA operating current (VDD = 3.5V), 0.05μA standby current.

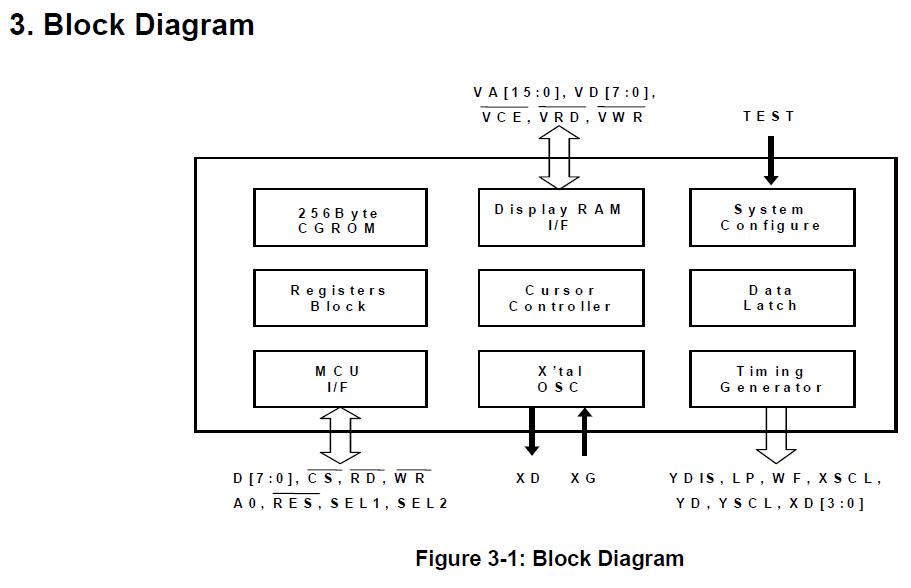

Diagrams
 |
 RA8835 |
Other |
|
Data Sheet |
Negotiable |
|
||||
