Product Summary

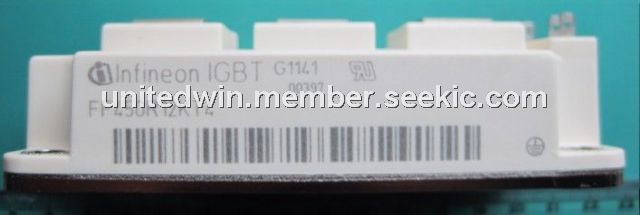

The FF450R12KT4 is a 62mm C-series module with fast trench/fieldstop IGBT4 and emitter controlled diode.

Parametrics

FF450R12KT4 absolute maximum ratings: (1)collector-emitter voltage,Tvj=25°C:1200V; (2)DC-collector current:Tc=100°C,Tvj=175°C:450A;Tc=25°C,Tvj=175°C:580A; (3)repetitive peak collector current:900A; (4)total power dissipation:2400W; (5)gate-emitter peak voltage:±20V.

Diagrams

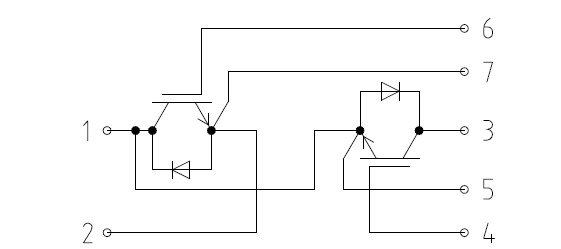

FF450R12KT4 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF450R12KT4
FF450R12KT4
Infineon Technologies
IGBT Modules N-CH 1.2KV 580A
Data Sheet
0-6: $133.78
6-10: $120.40
