Product Summary

The FS150R06KE3 is a module with fast trench/fieldstop IGBT³ and EmCon3 diode.

Parametrics

FS150R06KE3 absolute maximum ratings: (1)collector-emitter voltage,Tvj=25°C:600V; (2)DC-collector current:Tc=55°C,Tvj=175°:150A; (3)repetitive peak collector current:300A; (4)total power dissipation:430W; (5)gate-emitter peak voltage:±20V.

Diagrams

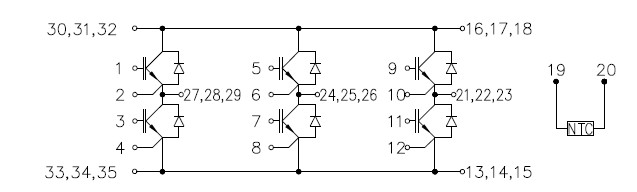

FS150R06KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS150R06KE3
FS150R06KE3
Infineon Technologies
IGBT Modules IGBT MODULES 600V
Data Sheet
0-5: $128.50
5-10: $109.22
