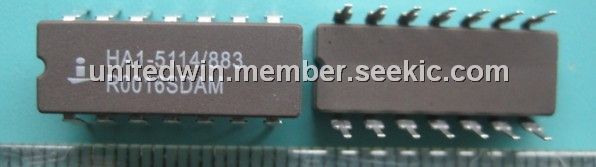

HA1-5114/883

HA1-5114/883, uncompensated operational amplifier, 10mA, 40V, CDIP14

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: HA1-5114/883

Brand:: Intersil Corporation - Intersil | Pack: CDIP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:HA1-5114/883
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HA1-5114/883 is a quad, low noise, high performance uncompensated operational amplifier. This general purpose amplifier offers an array of dynamic specifications including 12V/ms slew rate (min), and 40MHz gain-bandwidth- product for AVCL ≥10. Complementing these outstanding parameters is a very low noise specification of 6nV/√￣Hz at 1kHz (max). The applications of the HA1-5114/883 include high quality audio preamplifiers, high Q active filters, low noise function generators, low distortion oscillators, low noise comparators.

Parametrics

HA1-5114/883 absolute maximum ratings: (1)Voltage between V+ and V- terminals: 40V; (2)Differential input voltage: 7V; (3)Voltage at either input terminal: V+ to V-; (4)Peak output current: indefinite (one amplifier shorted to ground); (5)Junction temperature (TJ): +175℃; (6)Storage temperature range: -65℃ to +150℃; (7)ESD rating: <2000V; (8)Lead temperature (soldering 10s): +300℃.

Features

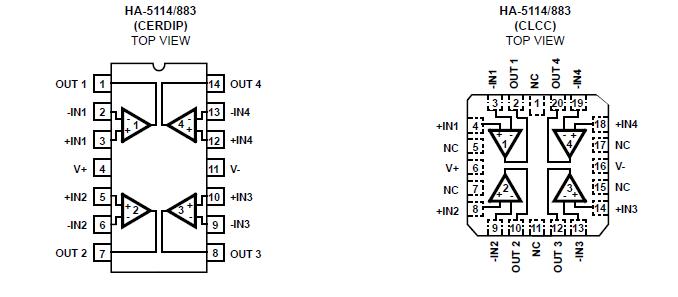

HA1-5114/883 features: (1)This circuit is processed in accordance to MIL-STD-883 and is fully conformant under the provisions of paragraph 1.2.1.; (2)Low input noise voltage density at 1kHz: 6nV/√￣Hz(Max); 4.3nV/√￣Hz (Typ); (3)High slew rate: 12V/ms (Min); 20V/ms (Typ); (4)Wide gain bandwidth product (AVCL ≥10): 40MHz (Typ); (5)High open loop gain (full temp): 100kV/V (Min); 250kV/V (Typ); (6)High CMRR, PSRR (Full Temp): 86dB (Min); 100dB (Typ); (7)Low offset voltage drift: 3μV/oC (Typ); (8)No crossover distortion; (9)Standard quad pinout.
