Product Summary
The MC1569R is a positive voltage regulator designed to deliver continuous load current up to 500 mAdc. Output voltage is adjustable from 2.5 Vdc to 37 Vdc. The MCI569R is specified for use within the military temperature range (—55 to +125°C).For systems requiring a positive regulated voltage, the MC1569R can be used with performance nearly identical to the MC1563 negative voltage regulator.
Parametrics
MC1569R absolute maximum ratings: (1)Input Voltage:40V; (2)Current, Pin 2:10mA; (3)Current, Pin 9:5.0mA; (4)Power Dissipation and Thermal Characteristics:TA = +25°C:0.68 to 3.0W;Derate above = +25°C:5.44to 24mW/°C;Thermal Resistance, Junction to Air:184 to 41.6°C/W;Tc = +25°C:1.8 to 14W;Derate above Tc =+25°C:14.4 to 140mW/°C;Thermal Resistance, Junction to Case:69.4 to 7.15°C/W; (5)Operating and Storage Junction Temperature:-65 to +150°C.
Features
MC1569R features (1)Electronic "Shut-Down" Control; (2)Excellent Load Regulation ; (3)High Power Capability: up to 17.5 Watts; (4)Excellent Temperature Stability: ±0.002 %/°C typ; (5)High Ripple Rejection: 0.002 %/V typ.

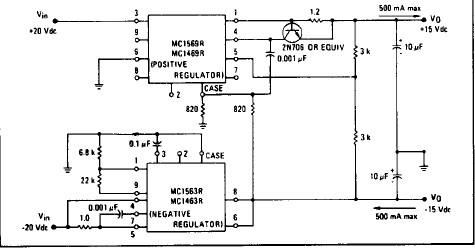

Diagrams
 |
