Product Summary

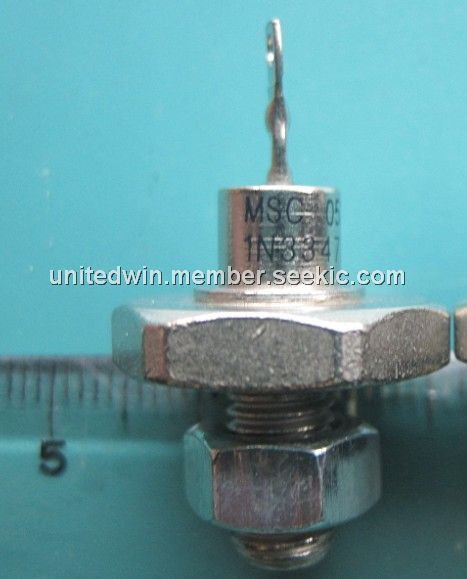

The 1N3347B is a silicon 50Watt zener diode.

Parametrics

1N3347B aboslute maximum ratings: (1)junction and storage temperature: -65 to 175℃; (2)DC power dissipation: 50W; (3)power derating: 0.5W/° above 75℃; (4)forward votlage at 10A: 1.5Volts.

Features

1N3347B features: (1)zener votlage 3.9 to 200V; (2)low zener impedance; (3)highly reliable and rugged; (4)for military and other demanding applications.

Diagrams

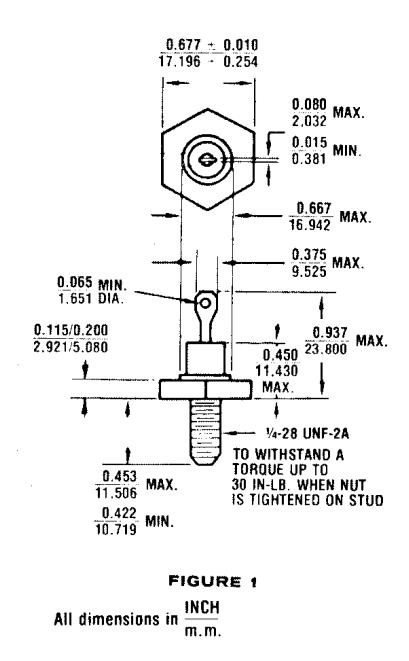

1N3347B dimensions
