Product Summary

The CY7C168A-35DMB is a high-performance CMOS static RAM organized as 4096 by 4 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE) and three-state drivers. The CY7C168A-35DMB has an automatic power-down feature, reducing the power consumption by 77% when deselected.

Parametrics

CY7C168A-35DMB absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient temperature with power applied: -55℃ to +125℃; (3)Supply voltage to ground potential(Pin 20 to Pin 10): - 0.5V to +7.0V; (4)DC voltage applied to outputs in high Z state: -0.5V to +7.0V; (5)DC input voltage: -3.0V to +7.0V; (6)Output current into outputs (Low): 20 mA; (7)Static discharge voltage: >2001V; (8)Latch-up current: >200 mA.

Features

CY7C168A-35DMB features: (1)Automatic power-down when deselected; (2)CMOS for optimum speed/power; (3)High speed_tAA = 15 ns; (4)Low active power_633 mW; (5)Low standby power_110 mW; (6)TTL-compatible inputs and outputs; (7)VIH of 2.2V; (8)Capable of withstanding greater than 2001V electrostat-ic discharge.

Diagrams

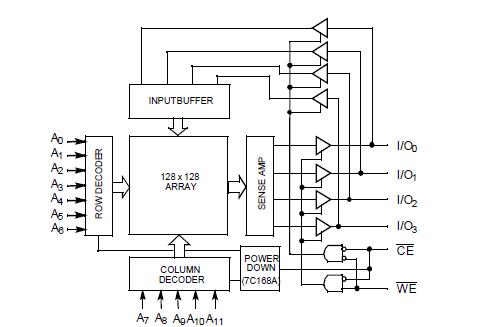

CY7C168A-35DMB logic block diagram
