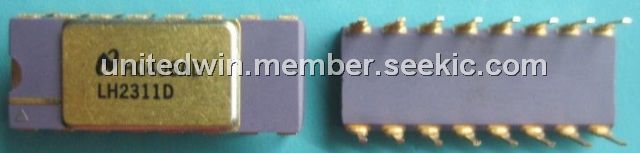

Product Summary

The LH2311D is a dual voltage comparator. It is two LM111 type comparators in a single hermetic package. Featuring all the same performance characteristics of the single, these duals offer in addition closer thermal tracking, lower weight, reduced insertion cost and smaller size than two singles. For additional information see the LM111 data sheet and national’s linear application handbook.

Parametrics

LH2311D absolute maximum ratings: (1)Total supply voltage (V+ to V-): 36V; (2)Output to negative supply voltage (VOUT to V-): 50V; (3)Ground to negative supply voltage (GND to V-): 30V; (4)Differential input voltage: ±30V; (5)Input voltage: ±15V; (6)Power dissipation: 500 mW; (7)Output short circuit duration: 10 sec; (8)Operating temperature range: 0℃ to +70℃; (9)Storage temperature range: -65℃ to +150℃; (10)Lead temperature (soldering, 10 sec): 300℃.

Features

LH2311D features: (1)Wide operating supply range: ±15V to a single +5V; (2)Low input currents 6 nA; (3)High sensitivity 10 μV; (4)Wide differential input range ±30V; (5)High output drive 50 mA, 50V.

Diagrams

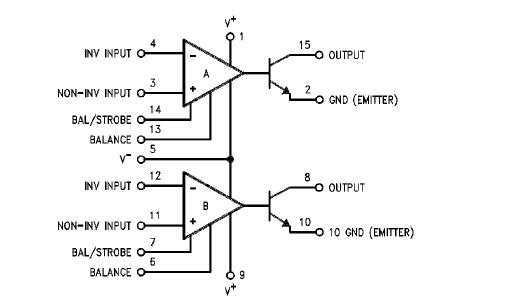

LH2311D connection diagram

LH2311
LH2311
