Product Summary

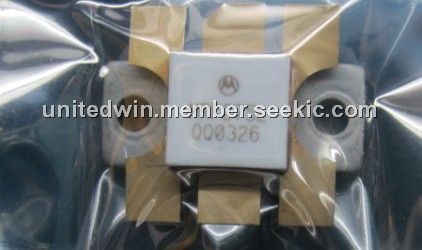

The MRF275L is a RF MOSFET Line, designed for broadband commercial and military applications using single ended circuits at frequencies to 500MHz. The high power, high gain and broadband performance of the MRF275L makes possible solid state transmitters for FM broadcast or TV channel frequency bands.
Parametrics
MRF275L absolute maximum ratings: (1)Drain-source voltage, VDSS: 55V; (2)Gate- source voltage, VGS: ±20V; (3)Drain current - continuous, ID: 13A; (4)Total device dissipation at TC= 25℃, PD: 270Watts; derate above 25℃, PD: 1.54W/℃; (5)Storage temperature range, Tstg: -65 to +150℃; (6)Operating junction temperature, TJ: 200℃.
Features
MRF275L features: (1)Guaranteed performance at 500 MHz, 28 Vdc: output power - 100 W; power gain - 8.8 dB typ.; efficiency - 55% typ.; (2)100% ruggedness tested at rated output power; (3)Low thermal resistance; (4)Low Crss -17 pF typ. at VDS= 28V.

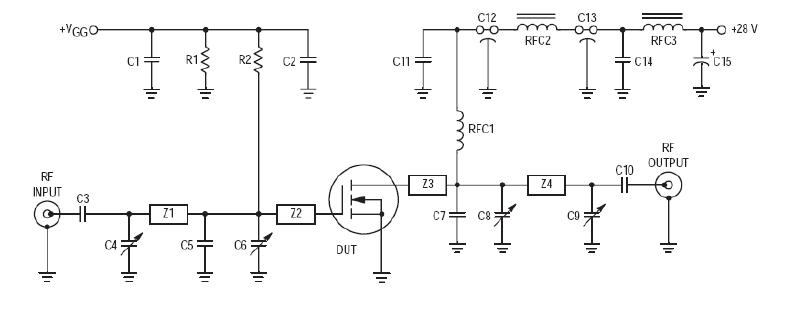

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF275L |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-500MHz 100Watts 28Volt Gain 8.8dB |
Data Sheet |
|
|
||||||||||||
