Product Summary

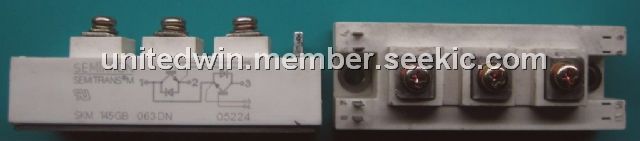

The SKM145GB063DN is a superfast NPT-IGBT module. The applications of the SKM145GB063DN include switching(not for linear use), switched mode power supplies, UPS, AC incerter servo drives, pulse frequencies also above 10kHz, welding inverters.
Parametrics
SKM145GB063DN absolute maximum ratings: (1)VCES2: 600V; (2)Tc= 25(80)℃, Ic: 200(140)A; (3)tp= 1ms, ICRM: 300A; (4)VGES:±20V; (5)TOPERATION≤ stg, Tvj·(Tstg): －40 to +150(125)℃; (6)AC, 1min., Visol: 2500V.
Features
SKM145GB063DN features: (1)N channel, Homogeneous Silicon structure(NPT-Non punch-throughIGBT); (2)Low tail current with low temperature dependence; (3)High short circuit capability, self limiting if term. G is clamped to E; (4)Pos. temp. -coeff- of VCEsat; (5)Very low Cies, Coes, Cres; (6)Fast & soft inverse CAL diodes; (7)Without hard mould; (8)Large clearance(10mm) and creepage distances(20mm).
