Product Summary
The AD7863ARZ-10 is a high speed, low power, dual 14-bit A/D converter that operates from a single +5 V supply. The AD7863ARZ-10 contains two 5.2 μs successive approximation ADCs, two track/hold amplifiers, an internal +2.5 V reference and a high speed parallel inter- face. Four analog inputs are grouped into two channels (A and B) selected by the A0 input. Each channel has two inputs (VA1 and VA2 or VB1 and VB2), which can be sampled and converted simultaneously thus preserving the relative phase information of the signals on both analog inputs. The applications of the AD7863ARZ-10 include AC Motor Control, Uninterrupted Power Supplies, Data Acquisition Systems and Communications.
Parametrics
AD7863ARZ-10 absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)VDD to DGND: –0.3 V to +7 V; (3)Analog Input Voltage to AGND: ±17 V; (4)Reference Input Voltage to AGND:.–0.3 V to VDD + 0.3 V; (5)Digital Input Voltage to DGND: –0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to DGND: –0.3 V to VDD + 0.3 V; (7)Operating Temperature Range: –40 to +85℃; (8)Storage Temperature Range: –65 to +150℃; (9)Junction Temperature: +150℃; (10)SOIC Package, Power Dissipation: 450 mW; (11)θJA Thermal Impedance: 110℃/W; (12)Lead Temperature, Soldering, Vapor Phase (60 sec): +215℃; (13)Power Dissipation: 450 mW; (14)θJA Thermal Impedance: 110℃/W; (15)Lead Temperature, Soldering: +215℃.
Features
AD7863ARZ-10 features: (1)Two Fast 14-Bit ADCs; (2)Four Input Channels; (3)Simultaneous Sampling and Conversion; (4)5.2 μs Conversion Time; (5)Single Supply Operation; (6)Input Ranges: ±10 V; (7)High Speed Parallel Interface; (8)Low Power, 70 mW Typ; (9)Power Saving Mode, 105 mW Max; (10)Overvoltage Protection on Analog Inputs.

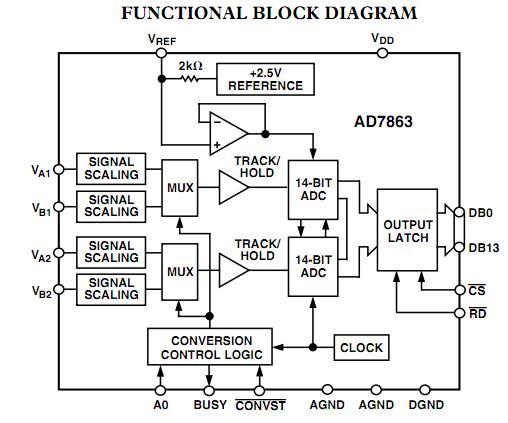

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7863ARZ-10 |
|
IC ADC 14BIT DUAL 2CHAN 28SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD7863ARZ-10REEL |
|
IC ADC 14BIT DUAL 2CH 28-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
AD7863ARZ-10REEL7 |
|
IC ADC 14BIT DUAL 2CHAN 28SOIC |
Data Sheet |
|
|
||||||||||||||||
