Product Summary

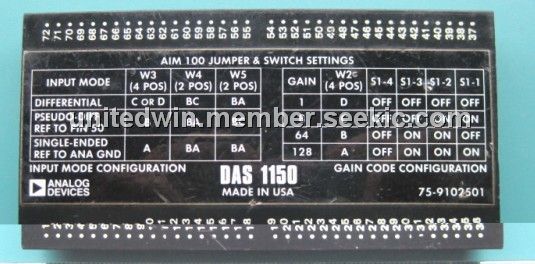

The DAS1150 is a 14-/15-bit sampling anaiog-to-digital convener having a maximum throughput rate of 25kHz/20kHz. It provides high accuracy, high stability, and functional completeness all in a 2" x 4W x 0.44" metal case. And it is used in Motor Control,SMPS&UPS, welding equipment and so on.

Parametrics

DAS1150 absolute maximum ratings: (1)Collector-Emitter Voltage(Vbe=-5V):600V; (2)Emitter-Base Voltage(Ic=0):450V; (3)Collector Current:75A; (4)Collector Peak Current:112A; (5)Base Current:5A; (6)Base Peak Current:7A; (7)Total Dissipation at Tc=25°C:250W; (8)Storage Temperature:-55 to 150°C; (9)Max. Operating Junction Temperature:150°C; (10)Insulation Withstand Voltage:2500V.

Features

DAS1150 features: (1)Complete with High Accuracy Sample/Hold and A/D Converter ; (2)Low Differential Nonlinearity T.C.: ±2ppm/°C max; (3)High Throughput Rate: 25kHz min; (4)High Feedthrough Rejection: -96dB; (5)Byte-Selectable Tri-State Buffered Outputs ; (6)Internal Gain & Offset Potentiometers ; (7)Improved Second Source to A/D/A/M 824 and AJDIMA 825 Modules.

Diagrams

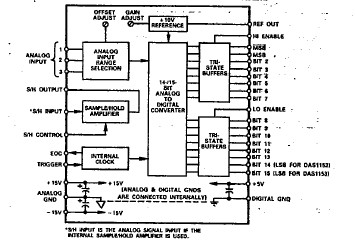

DAS1150 Block Diagram
