Product Summary

The MP02HB260-14 is a dual diode module. The applications of the MP02HB260-14 include rectifier bridges, DC power bridges, plating rectifiers, traction systems.

Parametrics

MP02HB260-14 absolute maximum ratings: (1)Forward voltage, At 600A, Tcase= 25℃, VFM: 1.3V; (2)Peak reverse current, At VRRM, Tj = 150℃, IRM: 30mA; (3)Threshold voltage, At Tvj= 150℃, VTO: 0.84 V; (4)On-state slope resistance, At Tvj= 150℃, rT: 0.667 mΩ.

Features

MP02HB260-14 features: (1)Dual device module; (2)Electrically isolated package; (3)Pressure contact construction; (4)International standard footprint; (5)Alumina (non-toxic) isolation medium.

Diagrams

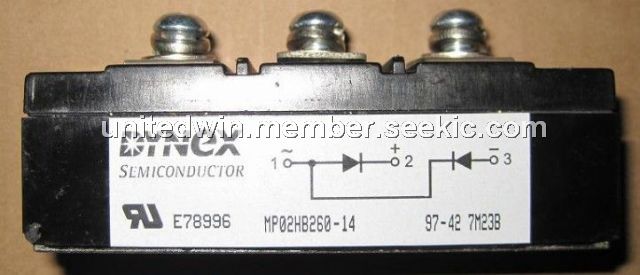

MP02HB260-14 circuit diagram
