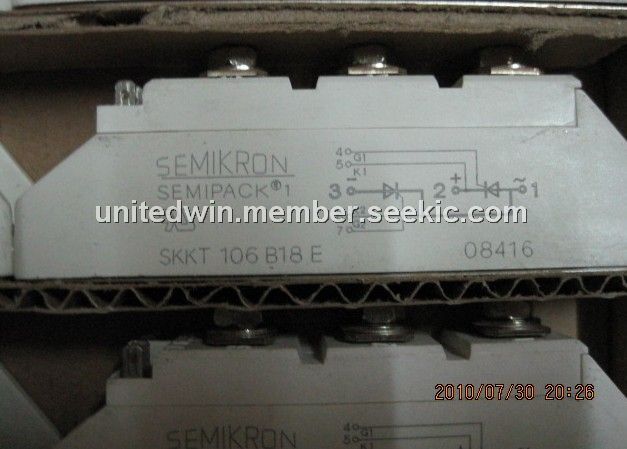

The SKKT106B18E is a thyristor. The applications of the SKKT106B18E include DC motor control (e.g. for machine tools), AC motor soft starters, temperature control (e.g. for ovens, chemical processes), professional light dimming (studios, theaters).
Parametrics
SKKT106B18E absolute maximum ratings: (1)sin. 180; Tcase= 85(100)℃, ITAV: 106(78)A; B2/B6 Tamb= 35℃; P 3/180F, ID: 145 / 180A; Tamb= 35℃; P 16/200 F, ID: 190/ 260A; (2)Tvj= 25℃; 10 ms, ITSM: 2250A; Tvj= 130℃; 10 ms, ITSM: 1900A; Tvj= 25℃; 8,3 to 10 ms, i2t: 25000A2s ; Tvj= 130℃; 8,3 to 10 ms, i2t: 18000A2s; (3)Tvj= 25℃; IT= 300A,VT: max.1.65V; Tvj= 130℃, VT(TO): max.0.9V; Tvj= 130℃,rT: max.2mΩ; Tvj= 130℃; VRD=VRRM; VDD=VDR, IDD;IRD: max.20mA; (4)Tvj= 25℃; IG= 1A;diG/dt= 1 A/μs, tgd: 1μs; VD= 0,67 VDRM, tgr: 2μs; (5)Tvj= 130℃, (di/dt)cr: max.150A/μs; Tvj= 130℃, (di/dt)cr: max.1000A/μs; Tvj= 130℃, tq: 100μs; Tvj= 25℃;typ./max., LH:150/250mA; Tvj= 25℃; RG=33Ω; typ./max., IL:300/600mA; (6)Tvj= 25℃; d.c., VGT: min.3V; Tvj= 25℃; d.c., IGT: min.150mA; Tvj= 125℃; d.c., VGD: max.0.25V; Tvj= 125℃; d.c., IGD: max.6mA.
Features
SKKT106B18E features: (1)Heat transsfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no.E63532.
