Product Summary

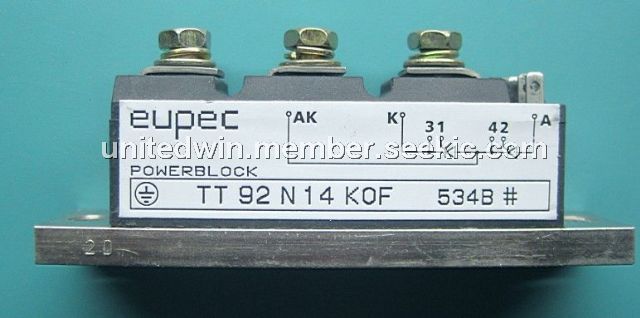

The TT92N14KOF is a phase control thyristor module.
Parametrics
TT92N14KOF absolute maximum ratings: (1)Repetitive peak forward off-state and reverse voltages, Tvj= -40℃ to Tvj max, VDRM: 1200, 1400V; VRRM: 1600V; (2)Non-repetitive peak forward off-state voltage, Tvj= -40℃ to Tvj max, VDSM: 1200, 1400V; 1600V; (3)Non-repetitive peak reverse voltage, Tvj= +25℃ to Tvj max, VRSM: 1300, 1500V; 1700V; (4)Maximum RMS on-state current, ITRMSM: 160A; (5)Average on-state current, TC= 85℃, ITAVM: 92A; TC= 76℃, ITAVM: 104A; (6)Surge current, Tvj= 25℃, tP= 10 ms, ITSM: 2050A; Tvj= Tvj max, tP= 10 ms, ITSM: 1800A; (7)I2t-value, Tvj= 25℃, tP= 10 ms, I2t: 21000A2s; Tvj= Tvj max, tP= 10 ms, I2t: 16200A2s; (8)Critical rate of rise of on-state current, DIN IEC 747-6, f= 50Hz, iGM= 0.6A, diG/dt= 0.6A/μs, (diT/dt)cr: 150 A/μs; (9)Critical rate of rise of off-state voltage, Tvj= Tvj max, vD= 0,67 VDRM 6.Kennbuchstabe / 6th letter F, (dvD/dt)cr: 1000V/μs.
Features
TT92N14KOF features: (1)on-state voltage, Tvj= Tvj max , iT= 300 A, vT: max. 1.62V; (2)threshold voltage, Tvj= Tvj max, V(TO): 0.85V; (3)slope resistance, Tvj= Tvj max, rT: 2.15 mΩ; (4)gate trigger current, Tvj= 25℃, vD= 6V, IGT: max. 120mA; (5)gate trigger voltage, Tvj= 25℃, vD= 6V, VGT: max. 1,4V; (6)gate non-trigger current, Tvj= Tvj max , vD= 6V, IGD: max. 5.0mA; Tvj= Tvj max , vD= 0,5 VDRM, IGD: max. 2,5mA; (7)gate non-trigger voltage, Tvj= Tvj max , vD= 0.5 VDRM, VGD: max. 0.2V; (8)holding current, Tvj= 25℃, vD= 6 V, RA= 5Ω, IH: max. 200mA; (9)latching current, Tvj= 25℃, vD= 6 V, RGK≥ 10 Ω, iGM= 0,6A,, diG/dt= 0,6A/μs, tg= 20 μs, IL: max. 620mA; (10)forward off-state and reverse current, Tvj= Tvj max, vD= VDRM, vR= VRRM, iD, iR: max. 25mA; (11)gate controlled delay time, DIN IEC 747-6 Tvj= 25℃, iGM= 0,6A, diG/dt= 0,6A/μs, tgd: max. 3μs.
Diagrams
