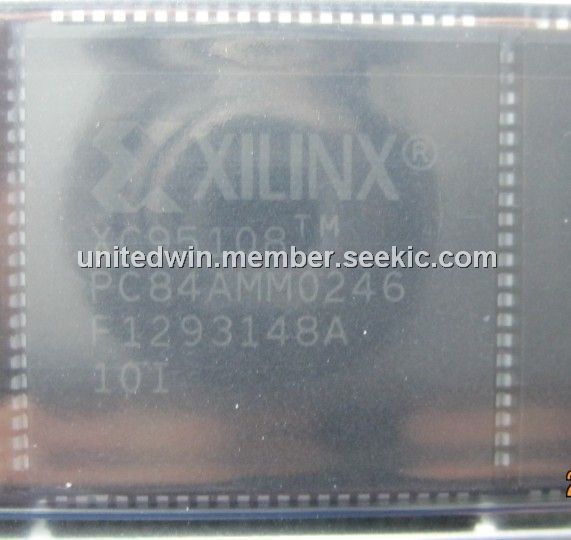

XC95108-10PC84I

XC95108-10PC84I, high-performance CPLD, 5V, 100mA, PLCC84

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: XC95108-10PC84I

Brand:: Xilinx, Inc - Xilinx | Pack: PLCC | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:XC95108-10PC84I
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC95108-10PC84I is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. The XC95108-10PC84I is comprised of six 36V18 Function Blocks, providing 2,400 usable gates with propagation delays of 7.5 ns. See Figure 2 for the architecture overview.

Parametrics

XC95108-10PC84I absolute maximum ratings: (1)Supply voltage relative to GND, VCC: -0.5 to 7.0 V; (2)DC input voltage relative to GND, VIN: -0.5 to VCC + 0.5 V; (3)Voltage applied to 3-state output with respect to GND, VTS: -0.5 to VCC + 0.5 V; (4)Storage temperature, TSTG: -65 to +150℃; (5)Max soldering temperature (10 s @ 1/16 in = 1.5 mm), TSOL: +260℃.

Features

XC95108-10PC84I features: (1)7.5 ns pin-to-pin logic delays on all pins; (2)fCNT to 125 MHz; (3)108 macrocells with 2400 usable gates; (4)Up to 108 user I/O pins; (5)5 V in-system programmable (ISP): Endurance of 10,000 program/erase cycles; Program/erase over full commercial voltage and temperature range; (6)Enhanced pin-locking architecture; (7)Flexible 36V18 Function Block: 90 product terms drive any or all of 18 macrocells within Function Block; Global and product term clocks, output enables, set and reset signals; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (9)Programmable power reduction mode in each macrocell; (10)Slew rate control on individual outputs; (11)User programmable ground pin capability; (12)Extended pattern security features for design protection; (13)High-drive 24 mA outputs; (14)3.3 V or 5 V I/O capability; (15)Advanced CMOS 5V FastFLASH technology; (16)Supports parallel programming of more than one XC9500 concurrently; (17)Available in 84-pin PLCC, 100-pin PQFP, 100-pin TQFP and 160-pin PQFP packages.
